LM Cables is a leading manufacturer of 6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/STA/PVC Single Core Power Cable(NA2XSBY Cable) in the field of power transmission and distribution
With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc.
LM Cables's 6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/STA/PVC Single Core Power Cable(NA2XSBY Cable) have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.
In this page, we'll introduce 6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/STA/PVC Single Core Power Cable(NA2XSBY Cable) and their advantages, applications, standards and frequently asked questions.
Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.

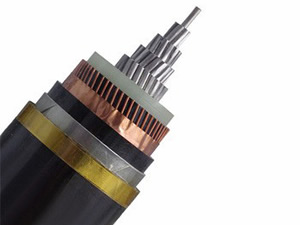

NA2XSBY Medium voltage cable, NA2XSBY Cable, YJLV62 Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV AL/XLPE/STA/PVC Single Core Power Cable
1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: Copper tape
6)Inner sheath: Polyvinyl chloride PVC
7)Armour: Non-metallic, steel tape armour
8)Outer sheath: Polyvinyl chloride PVC
LM Cable’s Medium voltage NA2XSBY Cable (AL/XLPE/STA/PVC) meets or exceeds the following Standards
IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) – Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
Get all the answers to the most frequently asked questions (FAQs) regarding NA2XSBY Cable meaning,NA2XSBY Cable pdf,NA2XSBY Cable full form,NA2XSBY Cable current rating,NA2XSBY Cable type,NA2XSBY Cable manufacturer and much, much more.
Medium voltage NA2XSBY Cable (AL/XLPE/STA/PVC) manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
| No. of cores and nominal cross section | Thickness of insulation | Thickness of steel tape | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X16 | 3.4 | 0.2 | 1.8 | 21.7 | 627 | 1.91 | 75 | 70 |
| 1X25 | 3.4 | 0.2 | 1.8 | 22.7 | 692 | 1.20 | 100 | 105 |
| 1X35 | 3.4 | 0.2 | 1.8 | 23.7 | 758 | 0.868 | 115 | 125 |
| 1X50 | 3.4 | 0.2 | 1.8 | 25.0 | 842 | 0.641 | 140 | 150 |
| 1X70 | 3.4 | 0.2 | 1.8 | 26.7 | 966 | 0.443 | 170 | 185 |
| 1X95 | 3.4 | 0.2 | 1.9 | 28.5 | 1112 | 0.320 | 205 | 220 |
| 1X120 | 3.4 | 0.2 | 1.9 | 29.9 | 1234 | 0.253 | 240 | 250 |
| 1X150 | 3.4 | 0.2 | 2.0 | 31.6 | 1380 | 0.206 | 270 | 280 |
| 1X185 | 3.4 | 0.2 | 2.0 | 33.3 | 1550 | 0.164 | 310 | 320 |
| 1X240 | 3.4 | 0.5 | 2.1 | 36.9 | 2151 | 0.125 | 360 | 375 |
| 1X300 | 3.4 | 0.5 | 2.2 | 39.3 | 2442 | 0.100 | 420 | 425 |
| 1X400 | 3.4 | 0.5 | 2.3 | 42.5 | 2840 | 0.0778 | 485 | 485 |
| 1X500 | 3.4 | 0.5 | 2.4 | 45.8 | 3331 | 0.0605 | 620 | 540 |
| 1X630 | 3.4 | 0.5 | 2.5 | 50.0 | 3957 | 0.0469 | 730 | 700 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of steel tape | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X25 | 4.5 | 0.2 | 1.8 | 24.9 | 802 | 1.20 | 100 | 105 |
| 1X35 | 4.5 | 0.2 | 1.8 | 25.9 | 871 | 0.868 | 115 | 125 |
| 1X50 | 4.5 | 0.2 | 1.8 | 27.2 | 960 | 0.641 | 140 | 150 |
| 1X70 | 4.5 | 0.2 | 1.9 | 29.1 | 1102 | 0.443 | 170 | 185 |
| 1X95 | 4.5 | 0.2 | 1.9 | 30.7 | 1242 | 0.320 | 205 | 220 |
| 1X120 | 4.5 | 0.2 | 2.0 | 32.3 | 1383 | 0.253 | 240 | 250 |
| 1X150 | 4.5 | 0.2 | 2.0 | 33.8 | 1521 | 0.206 | 270 | 280 |
| 1X185 | 4.5 | 0.5 | 2.1 | 36.9 | 2056 | 0.164 | 310 | 320 |
| 1X240 | 4.5 | 0.5 | 2.2 | 39.3 | 2346 | 0.125 | 360 | 375 |
| 1X300 | 4.5 | 0.5 | 2.3 | 41.7 | 2646 | 0.100 | 420 | 425 |
| 1X400 | 4.5 | 0.5 | 2.4 | 45.1 | 3079 | 0.0778 | 485 | 485 |
| 1X500 | 4.5 | 0.5 | 2.5 | 48.2 | 3560 | 0.0605 | 620 | 540 |
| 1X630 | 4.5 | 0.5 | 2.6 | 52.4 | 4202 | 0.0469 | 730 | 700 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of steel tape | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X35 | 5.5 | 0.2 | 1.9 | 27.6 | 944 | 0.868 | 185 | 134 |
| 1X50 | 5.5 | 0.2 | 1.9 | 29.1 | 1033 | 0.641 | 222 | 157 |
| 1X70 | 5.5 | 0.2 | 2.0 | 30.7 | 1178 | 0.443 | 278 | 192 |
| 1X95 | 5.5 | 0.2 | 2.0 | 32.6 | 1334 | 0.320 | 338 | 229 |
| 1X120 | 5.5 | 0.2 | 2.1 | 33.9 | 1467 | 0.253 | 391 | 260 |
| 1X150 | 5.5 | 0.5 | 2.2 | 36.7 | 1946 | 0.206 | 440 | 288 |
| 1X185 | 5.5 | 0.5 | 2.2 | 38.5 | 2150 | 0.164 | 504 | 324 |
| 1X240 | 5.5 | 0.5 | 2.3 | 41.7 | 2459 | 0.125 | 593 | 373 |
| 1X300 | 5.5 | 0.5 | 2.3 | 44.2 | 2767 | 0.100 | 677 | 419 |
| 1X400 | 5.5 | 0.5 | 2.5 | 47.3 | 3184 | 0.0778 | 769 | 466 |
| 1X500 | 5.5 | 0.5 | 2.6 | 50.2 | 3695 | 0.0605 | 856 | 558 |
| No. of cores and nominal cross section | Thickness of insulation | Thickness of steel tape | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | |
|---|---|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) |
| 1X35 | 8.0 | 0.2 | 2.0 | 33.54 | 1301 | 0.868 | 115 | 125 |
| 1X50 | 8.0 | 0.5 | 2.1 | 36.01 | 1736 | 0.641 | 140 | 145 |
| 1X70 | 8.0 | 0.5 | 2.2 | 37.91 | 1918 | 0.443 | 170 | 180 |
| 1X95 | 8.0 | 0.5 | 2.2 | 39.72 | 2109 | 0.320 | 205 | 215 |
| 1X120 | 8.0 | 0.5 | 2.3 | 41.12 | 2270 | 0.253 | 240 | 245 |
| 1X150 | 8.0 | 0.5 | 2.3 | 42.62 | 2445 | 0.206 | 270 | 275 |
| 1X185 | 8.0 | 0.5 | 2.4 | 44.43 | 2656 | 0.164 | 310 | 310 |
| 1X240 | 8.0 | 0.5 | 2.5 | 47.29 | 3015 | 0.125 | 360 | 360 |
| 1X300 | 8.0 | 0.5 | 2.5 | 49.72 | 3347 | 0.100 | 420 | 410 |
| 1X400 | 8.0 | 0.5 | 2.7 | 52.77 | 3795 | 0.0778 | 485 | 465 |
| 1X500 | 8.0 | 0.5 | 2.8 | 56.26 | 4341 | 0.0605 | 565 | 530 |
