AACSR Conductor Manufacturer

LM Cables is a leading manufacturer of AACSR Conductor in the field of power transmission and distribution

With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

LM Cables's AACSR Conductor have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.

In this page, we'll introduce AACSR Conductor and their advantages, applications, standards and frequently asked questions.

What’s AACSR Conductor?

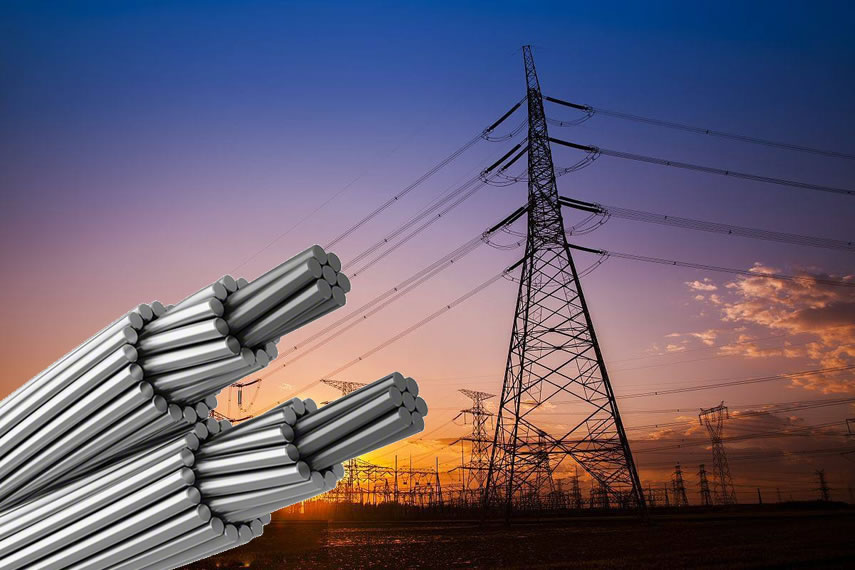

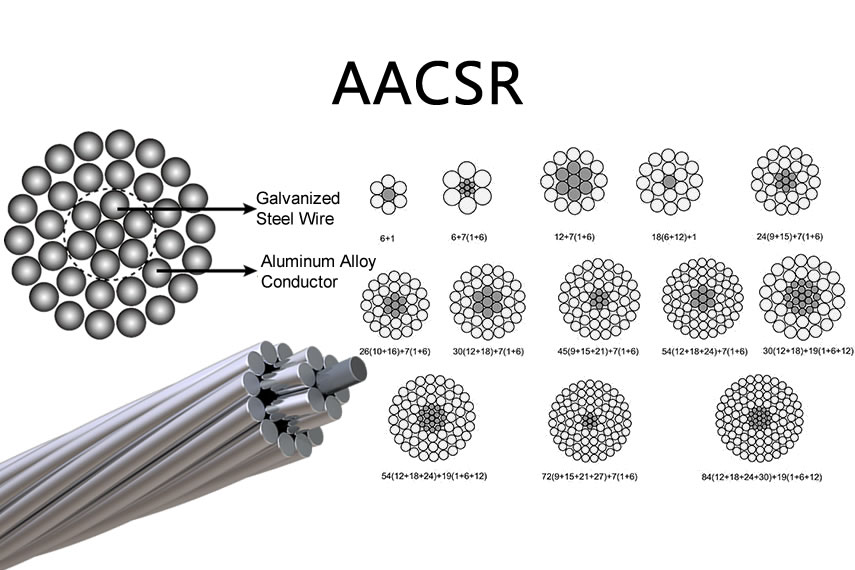

AACSR stands for Aluminum Alloy Conductor Steel Reinforced. It is a type of overhead electrical conductor used for power transmission and distribution lines. AACSR conductors are designed to combine the strength of steel with the lightweight properties of aluminum, resulting in a conductor that is both strong and efficient.

Overall, AACSR conductors are a reliable and efficient choice for overhead power transmission and distribution systems, offering a balance between mechanical strength, electrical conductivity, and weight.

Also Known As:

Aluminum Alloy Conductor Steel Reinforced,AACSR Conductor,AACSR Cable,AACSR wire.

LM Cables manufacture and supply AACSR Cable on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.

AACSR Conductor Standards

LM Cables can produce AACSR according to various domestic and international standards and customer requirements, including ASTM IEC and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.

American Standard-ASTM B 524
IEC 61089 Standard
French Standard- NF C
AS3607

AACSR Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding AACSR Cable sizes,AACSR Cable full form,AACSR Conductor size chart,AACSR Conductor chart,AACSR Conductor sizes,AACSR Conductor size chart,AACSR Conductor full form,AACSR Conductor ampacity,AACSR Conductor diameter,AACSR Conductor types,AACSR Conductor data sheet and much, much more.

AACSR Conductor ASTM B711

Nominal Sectional Area			No. / Nominal Dia. of Wire		Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Aluminum Alloy	Steel	Total	Aluminum Alloy	Steel
mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
140	23	163	26/2.62	7/2.04	16.6	565	75	0.23898
140	33	173	30/2.44	7/2.44	17.1	643	87.4	0.23906
160	26	186	26/2.80	7/2.18	17.7	646	85.6	0.20924
160	38	198	30/2.61	7/2.61	18.3	736	106	0.20893
180	29	209	26/2.97	7/2.31	18.8	731	95.1	0.18597
180	42	222	30/2.76	7/2.76	19.3	823	112	0.18684
200	32	232	26/3.13	7/2.43	19.8	805	106	0.16744
200	47	247	30/2.91	7/2.91	20.4	915	124	0.16807
224	36	260	26/3.31	7/2.57	21.0	901	118	0.14973
224	52	276	30/3.08	7/3.08	21.6	1025	139	0.15003
250	41	291	26/3.50	7/2.72	22.2	1008	129	0.13391
250	58	308	30/3.26	7/3.26	22.8	1149	156	0.13392
280	46	326	26/3.70	7/2.88	23.4	1127	144	0.11983
280	65	345	30/3.45	7/3.45	24.2	1286	171	0.11958
315	52	367	26/3.93	7/3.06	24.9	1272	163	0.10621
315	72	387	30/3.66	19/2.20	25.6	1438	190	0.12246
355	58	413	26/4.17	7/3.24	26.4	1430	183	0.09434
355	81	436	30/3.88	19/2.33	27.2	1614	211	0.10897
400	65	465	26/4.43	7/3.45	28.1	1616	207	0.08359
400	91	491	30/4.12	19/2.47	28.8	1818	237	0.09664
450	59	509	54/3.26	19/1.98	29.5	1706	215	0.08952
500	63	563	54/3.43	19/2.06	30.9	1878	229	0.08086
560	71	631	54/3.63	19/2.18	32.7	2104	257	0.07220
630	80	710	54/3.85	19/2.31	34.6	2365	286	0.06418
710	90	800	54/4.09	19/2.45	36.8	2664	322	0.05687
800	101	901	54/4.34	19/2.60	39.0	3003	363	0.05051
900	73	973	84/3.69	19/2.21	40.6	3060	355	0.05809
1000	81	1081	84/3.89	19/2.33	42.8	3400	391	0.05227
1120	91	1211	84/4.12	19/2.47	45.3	3816	439	0.04660
1250	102	1352	84/4.35	19/2.61	47.8	4255	490	0.04180

AACSR Conductor IEC61089

Code Number	Nominal Area			No. / Nominal Dia. of Wire		Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Aluminum Alloy	Steel	Total	Aluminum Alloy	Steel
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16	18.4	3.07	21.5	6/1.98	1/1.98	5.94	74.4	9.02	1.7934
25	28.8	4.8	33.6	6/2.47	1/2.47	7.41	116.2	13.96	1.1478
40	46	7.67	53.7	6/3.13	1/3.13	9.39	185.9	22.02	0.7174
63	72.5	12.1	84.6	6/3.92	1/3.92	11.8	292.8	34.68	0.4555
100	115	6.39	121	18/2.85	1/2.85	14.3	366.4	41.24	0.2880
125	144	7.99	152	18/3.19	1/3.19	16.0	458.0	51.23	0.2304
125	144	23.4	167	26/2.65	7/2.06	16.8	579.9	69.86	0.2310
160	184	10.2	194	18/3.61	1/3.61	18.0	586.2	65.58	0.1800
160	184	30.0	214	26/3.00	7/2.34	19.0	742.3	88.52	0.1805
200	230	12.8	243	18/4.04	1/4.04	20.2	732.8	81.97	0.1440
200	230	37.5	268	26/3.36	7/2.61	21.3	927.9	110.64	0.1444
250	288	28.3	316	22/4.08	7/2.27	23.1	1013.5	117.09	0.1154
250	288	46.9	335	26/3.75	7/2.92	23.8	1159.8	138.31	0.1155
315	363	25.1	388	45/3.20	7/2.14	25.6	1196.5	136.28	0.0917
315	363	59.0	422	26/4.21	7/3.28	26.7	1461.4	171.90	0.0917
400	460	31.8	492	45/3.61	7/2.41	28.9	1519.4	172.10	0.0722
400	460	59.7	520	54/3.29	7/3.29	29.7	1738.3	201.46	0.0723
450	518	35.8	554	45/3.83	7/2.55	30.6	1709.3	193.61	0.0642
450	518	67.1	585	54/3.49	7/3.49	31.5	1955.6	226.64	0.0643
500	575	39.8	615	45/4.04	7/2.69	32.3	1899.3	215.12	0.0578
500	575	74.6	650	54/3.68	7/3.68	33.2	2172.9	251.82	0.0578
560	645	44.6	689	45/4.27	7/2.85	34.2	2127.2	240.93	0.0516
560	645	81.6	726	54/3.90	7/2.34	35.1	2420.9	283.21	0.0516
630	725	31.3	756	72/3.58	7/2.39	35.8	2248.0	249.62	0.0459
630	725	91.8	817	54/4.13	7/2.48	37.2	2732.5	318.61	0.0459
710	817	35.3	852	72/3.80	7/2.53	38.0	2533.4	281.32	0.0407
710	817	104	921	54/4.39	19/2.63	39.5	3069.4	359.06	0.0407
800	921	39.8	961	72/4.04	7/2.69	40.4	2854.6	316.98	0.0361
800	921	76.7	997	84/3.74	7/3.74	41.1	3145.1	356.03	0.0362
900	1036	44.8	1081	72/4.28	7/2.85	42.8	3211.4	356.60	0.0321
900	1036	86.3	1122	84/3.96	7/3.96	43.6	3538.3	400.53	0.0322
1000	1151	93.7	1245	84/4.18	19/2.51	45.9	3916.8	446.37	0.0289
1120	1289	105	1394	84/4.42	19/2.65	48.6	4386.8	499.93	0.0258

AACSR Conductor AS3607

Code Name	No. / Nominal Dia. of Wire		Cross Section Area			Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
	Aluminum Alloy	Steel					Aluminum Alloy	Steel	Total
	No./mm	No./mm	mm2	mm2	mm2	mm	kg/km	kN	Ω/km
Apple 1120	6/3.00	1/3.00	42.4	7.1	49.5	9.0	171	18.3	0.7000
Banana 1120	6/3.75	1/3.75	66.3	11.0	77.3	11.3	268	27.9	0.4480
Cherry 1120	6/4.75	7/1.60	106	14.1	14.3	14.3	402	40.7	0.2790
Grape 1120	30/2.50	7/2.50	147	34.4	17.5	17.5	677	74.4	0.2030
Lemon 1120	30/3.00	7/3.00	212	49.5	21.0	21.0	973	107	0.1410
Lychee 1120	30/3.25	7/3.25	249	58.1	22.8	22.8	1140	126	0.1200
Lime 1120	30/3.50	7/3.50	289	67.3	24.5	24.5	1320	143	0.1040
Mango 1120	54/3.00	7/3.00	382	49.5	27.0	27.0	1440	149	0.0784
Orange 1120	54/3.25	7/3.25	448	58.1	29.3	29.3	1690	174	0.0669
Olive 1120	54/3.50	7/3.50	519	67.3	31.5	31.5	1960	197	0.0578

AACSR Conductor NF C Equal

				Equal steel and Aluminum wire diameter
Code Name	Size	Al Alloy Area	Steel Wire Area	No. Of Al Alloy Wires	No. Of St	Dia of Wire	Overall Dia of Conductor	Tens Str of Al Alloy	Tens Str of Steel	Rated Str of Conductor	Max DC Resist at 20 0C	Linear Weight	Elasticity Mod *	Coefficient Of Linear Expansion
		Mrn2	mm2		Wires	mm	mm	hbar	hbar	daN	Ω /km	Kg/km	hbar	/ 0C
PHLOX	37.7	28.27	9.42	9	3	2	8.3	32.4	156.8	2360	1.17	155	9300	17.0 x 10-1
PHLOX	59.7	37.7	21.99	12	7	2	10	32.4	156.8	4560	0.88	276	10800	15.3 x 106
PHLOX	75.5	47.71	27.83	12	7	2.25	11.25	32.4	156.8	5770	0.695	348	10800	15.3 X 10-6
PHLOX	116.2	56.55	59.69	18	19	2	14	32.4	156.8	10815	0.58	636	12400	14.2 x 10-6
PHLOX	147.1	71.57	75.54	18	19	2.25	15.75	32.4	156.8	13685	0.466	802	12400	14.2 X 10-6
PASTEL	147.1	119.28	27.83	30	7	2.25	15.75	32.4	156.8	8185	0.279	547	8400	18.1 x 10-6
PHLOX	181	88.36	93.27	18	19	2.5	17.5	32.4	156.8	16895	0.378	990	12400	14.2 x 10 6
PASTEL	181.6	147.26	34.36	30	7	2.5	17.5	32.4	156.8	10120	0.227	675	8400	18.1 x 10-1
PHLOX	228	110.83	116.99	18	19	2.8	19.6	32.4	156.8	21200	0.3	1244	12400	14.2 x 10-1
PASTEL	228	184.72	43.1	30	7	2.8	19.6	32.4	156.8	12680	0.18	848	8400	18.1 x 101
PHLOX	288	140.28	148.07	18	19	3.15	22.05	32.4	156.8	26800	0.237	1570	12400	14.2 x 101
PASTEL	288	233.8	54.55	30	7	3.15	22.05	32.4	156.8	16050	0.142	1074	8400	18.0 x 101
PASTEL	299	205.17	93.27	42	19	2.5	22.5	32.4	156.8	20875	0.162	1320	9650	16.3 x 10-1
PHLOX	376	147.78	227.83	24	37	2.8	25.2	32.4	156.8	38960	0.225	2211	13000	13.5 x 10-1

AACSR Conductor NF C Non-equal

				Non-equal steel and aluminum wire diameter
Code Name	Totall area	AI Alloy Area	Stell Area	No.&Dia Of Ai Alloy	No.& Dia Of Ai Stell	Overal Dia of Conductor	Tens Str of Al Alloy	Tens Str of Steel	Rated Str of Conductor	Max DC Resist at 20 0C	Linear Weight	Elast Mod *	Coefficient Of Linear Expansion
	Mm2	mm²	mm²	wires	wires	mm	hbar	hbar	daN	Ω /km	Kg/km	hbar	*/ oC
PHLOX	94.1	51.95	42.12	15x 2.10	19x 1.68	12.8	32.4	156.8	8035	0.642	481	11200	14.7 x 10 1
PASTEL	412	325.72	85.95	32x 3.60	19x 2.40	26.4	32.4	156.8	23830	0.103	1593	8200	17.8 x 10-1
PETUNIA	612	507.8	104.79	66x 3.13	19x 2.65	32.1	32.4	156.8	32830	0.0657	2241	7750	18.6 x 10-1
PETUNIA	865	717.33	148.06	66x 3.725	19x 3.10	38.1	32.4	156.8	46000	0.0465	3174	7750	18.5 x 10-1
				54x 2.80
POLYGONM	1185	956.66	227.82	66x 3.47	37x 2.80	44.7	32.4	156.8	66385	0.0349	4475	7750	18.1 x 10-1
