LM Cables is a leading manufacturer of Cable Almelec AAAC ASTER in the field of power transmission and distribution
With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
LM Cables's Cable Almelec AAAC ASTER have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.
In this page, we'll introduce Cable Almelec AAAC ASTER and their advantages, applications, standards and frequently asked questions.

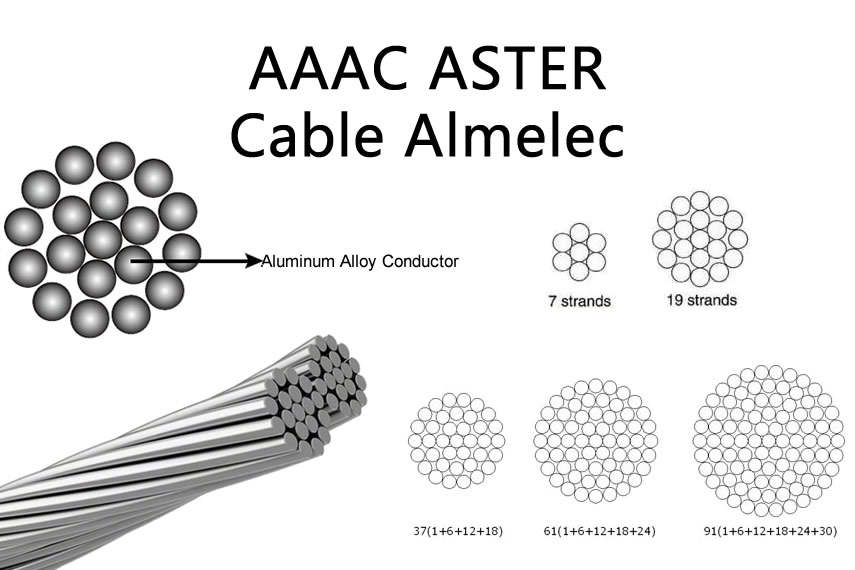

Cable Almelec, also known as AAAC (All Aluminum Alloy Conductor), is a type of electrical conductor used in overhead power transmission and distribution systems. It is made up of aluminum alloy strands that are twisted together to form a single conductor.They are also used as carrier for holding overhead electrical cables.
Cable Almelec,All Aluminum Alloy Conductor,AAAC Conductor,AAAC Cable,AAAC wire,AAAC ASTER.
LM Cables can manufacture & supply Cable Almelec AAAC ASTER on Non returnable wooden/steel reels or Returnable steel reels.
Conductor : Stranded Aluminium alloy (ALMELEC)
ALMELEC cables according to : NF EN 50182
LM Cables can produce Cable Almelec AAAC ASTER according to various domestic and international standards and customer requirements, including ASTM IEC and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.
| Conductor designation | Conductor designation | Cross Section | Compo- sition | Outer diameter | Tensile Strength | Max. resistance in DC at 20°C | Current rating at 30°C | Approx. weight | Use Tension (indicative) |
|---|---|---|---|---|---|---|---|---|---|
| Nouvelle New | Ancienne Old | mm2 | nbre x ∅ (mm) | (mm) | DaN | Ω / Km | A | Kg/Km | Kv |
| 22-AL4 | ASTER 22 | 21.99 | 7 x 2.00 | 6.00 | 715 | 1.5 | 115 | 60.2 | 30 |
| 34-AL4 | ASTER 34.4 | 34.36 | 7 x 2.50 | 7.50 | 1117 | 0.958 | 145 | 94 | 30 |
| 55-AL4 | ASTER 54.6 | 54.55 | 7 x 3.15 | 9.45 | 1773 | 0.603 | 190 | 149 | 30 |
| 76-AL4 | ASTER 75.5 | 75.54 | 19 x 2.25 | 11.25 | 2455 | 0.438 | 240 | 208 | 30 |
| 117-AL4 | ASTER 117 | 116.98 | 19 x 2.80 | 14.00 | 3802 | 0.283 | 270 | 322 | 30 |
| 148-AL4 | ASTER 148 | 148.01 | 19 x 3.15 | 15.75 | 4812 | 0.224 | 315 | 407 | 30 |
| 181.6-AL4 | ASTER 181.6 | 181.62 | 37 x 2.50 | 17.50 | 5903 | 0.183 | 365 | 500 | 30 |
| 228-AL4 | ASTER 228 | 227.83 | 37 x 2.80 | 19.60 | 7405 | 0.146 | 480 | 627 | 150 |
| 288-AL4 | ASTER 288 | 288.34 | 37 x 3.15 | 22.90 | 9371 | 0.115 | 550 | 794 | 150 |
| 366-AL4 | ASTER 366 | 366.22 | 37 x 3.55 | 24.85 | 11536 | 0.0905 | 770 | 1009 | 225 |
| 413-AL4 | AAAC816MCM | 413.5 | 37 x 3.77 | 26.4 | 12548 | 0.0795 | 850 | 1180 | 225 |
| 570-AL4 | ASTER 570 | 570.22 | 61 x 3.45 | 31.05 | 18533 | 0.0583 | 1080 | 1576 | 400 |
| 851-AL4 | ASTER 851 | 850.7 | 91 x 3.45 | 38.00 | 27647 | 0.0394 | 1500 | 2360 | 400 |
Delivers high-quality Cable Almelec AAAC ASTER to customers worldwide.
