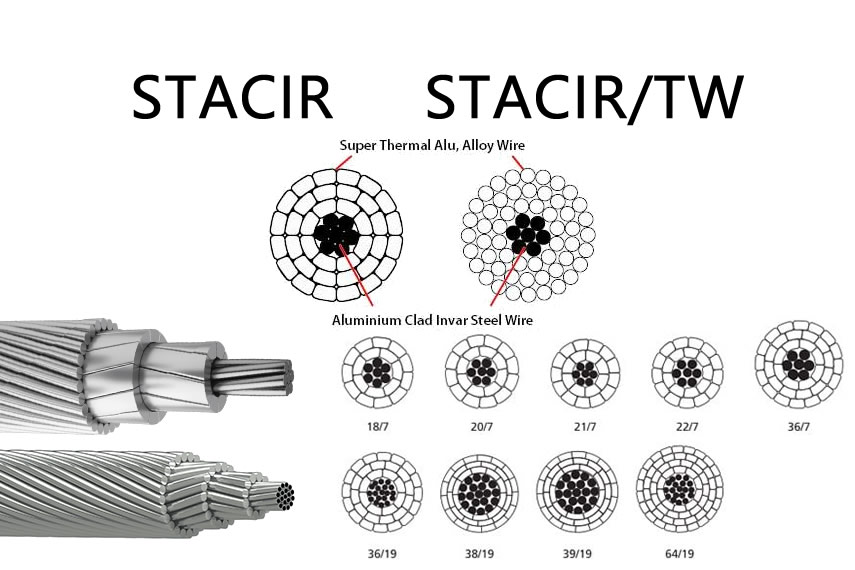

Super Thermal Alloy Conductor Invar Reinforced (STACIR) conductor has outer layers composed of Super Thermal Aluminium (STAL) alloy wires that can operate up to 210°C (410°F). The inner core is composed of aluminium clad INVAR wires. INVAR is a metal alloy with 36% Ni in steel.
STACIR/AW conductors are suited for re-conductoring applications. The capacity of existing transmission line can be enhanced by simply replacing the existing conductor without any modification to the tower.
Hi-STACIR/AW, STACIR/AW is normally used to up-rate an existing transmission line by simply replacing the exisitng conductor without tower modification or reinforcement.
STACIR Cable,STACIR/TW cable,STACIR Conductor,STACIR/TW Conductor,Super Thermal Alloy Conductor Invar Reinforced conductor.
STACIR Conductors are very similar in construction to a conventional ACSR conductor but the EC Grade Aluminium wires are replaced with Heat Resistant Aluminium Zirconium Alloy (generally known as STAL).
LM Cables can produce STACIR (STACIR/TW) Conductor according to various domestic and international standards and customer requirements, including GB, IEC, ASTM and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.
Get all the answers to the most frequently asked questions (FAQs) regarding STACIR (STACIR/TW) Cable sizes,STACIR (STACIR/TW) Cable full form,STACIR (STACIR/TW) Conductor size chart,STACIR (STACIR/TW) Conductor chart,STACIR (STACIR/TW) Conductor sizes,STACIR (STACIR/TW) Conductor size chart,STACIR (STACIR/TW) Conductor full form,STACIR (STACIR/TW) Conductor ampacity,STACIR (STACIR/TW) Conductor diameter,STACIR (STACIR/TW) Conductor types,STACIR (STACIR/TW) Conductor data sheet and much, much more.
| Conductor Size | Stranding(No. of Wires) | Stranding(Wire diameter) | Cross-Sectional Area | Diameter of Complete Conductor | Weight | Rated Strength | DCResistance @ 20°C | Current Capacity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STAL | Invar | STAL | Invar | STAL | Invar | Total | STAL | Invar | Total | @ 85°C | @ 150°C | @ 210°C | ||||
| (mm²) | (No.) | (No.) | (mm) | (mm) | (mm²) | (mm²) | (mm²) | (mm) | (Kg/Km) | (Kg/Km) | (Kg/Km) | (KN) | (Ω/Km) | (Ampere) | (Ampere) | (Ampere) |
| 200 | 30 | 7 | 2.60 | 2.60 | 159.28 | 37.17 | 196.44 | 18.20 | 439.31 | 265.01 | 704.32 | 65.38 | 0.1746 | 403 | 690 | 850 |
| 240 | 30 | 7 | 2.90 | 2.90 | 198.16 | 46.24 | 244.39 | 20.30 | 546.54 | 329.69 | 876.23 | 79.92 | 0.1403 | 460 | 794 | 980 |
| 300 | 30 | 7 | 3.20 | 3.20 | 241.27 | 56.30 | 297.57 | 22.40 | 665.47 | 401.43 | 1066.90 | 94.82 | 0.1153 | 518 | 901 | 1114 |
| 300 | 30 | 7 | 3.20 | 3.20 | 241.27 | 56.30 | 297.57 | 22.40 | 665.47 | 401.43 | 1066.90 | 94.82 | 0.1153 | 518 | 901 | 1114 |
| 380 | 26 | 7 | 4.00 | 3.10 | 326.73 | 52.83 | 379.56 | 25.30 | 902.22 | 376.73 | 1278.95 | 104.26 | 0.0866 | 612 | 1076 | 1335 |
| 380 | 26 | 7 | 4.00 | 3.10 | 326.73 | 52.83 | 379.56 | 25.30 | 902.22 | 376.73 | 1278.95 | 104.26 | 0.0866 | 612 | 1076 | 1335 |
| 480 | 26 | 7 | 4.50 | 3.50 | 413.51 | 67.35 | 480.86 | 28.50 | 1141.87 | 480.23 | 1622.10 | 132.42 | 0.0684 | 704 | 1253 | 1559 |
| 480 | 26 | 7 | 4.50 | 3.50 | 413.51 | 67.35 | 480.86 | 28.50 | 1141.87 | 480.23 | 1622.10 | 132.42 | 0.0684 | 704 | 1253 | 1559 |
| 520 | 45 | 7 | 3.70 | 2.47 | 483.85 | 33.54 | 517.39 | 29.61 | 1337.00 | 239.17 | 1576.17 | 113.10 | 0.0597 | 748 | 1336 | 1665 |
| 520 | 45 | 7 | 3.70 | 2.47 | 483.85 | 33.54 | 517.39 | 29.61 | 1337.00 | 239.17 | 1576.17 | 113.10 | 0.0597 | 748 | 1336 | 1665 |
| 590 | 54 | 7 | 3.50 | 3.50 | 519.54 | 67.35 | 586.89 | 31.50 | 1437.04 | 480.23 | 1917.27 | 150.84 | 0.0549 | 790 | 1419 | 1771 |
| 600 | 54 | 7 | 3.53 | 3.53 | 528.49 | 68.51 | 596.99 | 31.77 | 1461.78 | 488.50 | 1950.28 | 152.20 | 0.0540 | 797 | 1434 | 1791 |
| 630 | 54 | 19 | 3.63 | 2.18 | 558.85 | 70.92 | 629.77 | 32.68 | 1545.78 | 507.40 | 2053.17 | 163.93 | 0.0511 | 824 | 1486 | 1857 |
| 690 | 54 | 7 | 3.80 | 3.80 | 612.42 | 79.39 | 691.81 | 34.20 | 1693.95 | 566.08 | 2260.03 | 176.38 | 0.0466 | 869 | 1576 | 1972 |
| 710 | 54 | 19 | 3.85 | 2.31 | 628.65 | 79.63 | 708.27 | 34.65 | 1738.82 | 569.72 | 2308.54 | 182.37 | 0.0454 | 883 | 1602 | 2006 |
| 730 | 45 | 7 | 4.40 | 2.90 | 684.24 | 46.24 | 730.48 | 35.10 | 1890.75 | 329.69 | 2220.44 | 155.82 | 0.0423 | 914 | 1663 | 2084 |
| 770 | 54 | 7 | 4.00 | 4.00 | 678.59 | 87.96 | 766.55 | 36.00 | 1876.95 | 627.24 | 2504.19 | 193.40 | 0.0421 | 922 | 1682 | 2108 |
| 800 | 54 | 19 | 4.09 | 2.45 | 709.47 | 89.57 | 799.04 | 36.79 | 1962.37 | 640.86 | 2603.23 | 205.51 | 0.0403 | 946 | 1729 | 2169 |
| 900 | 54 | 19 | 4.34 | 2.61 | 798.85 | 101.65 | 900.50 | 39.09 | 2209.60 | 727.30 | 2936.90 | 230.40 | 0.0357 | 1014 | 1868 | 2348 |
| Conductor Size | Cross-Sectional Area | Stranding | Diameter of Complete Conductor | Weight | Rated Strength | DCResistance @ 20°C | Current Capacity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STAL | Invar | Total | No. of STAL Wires | No. of STAL Layers | No. of Invar Wires | Dia. of Invar Wires | STAL | Invar | Total | @ 85°C | @ 150°C | @ 210°C | ||||
| (mm²) | (mm²) | (mm²) | (mm²) | (No.) | (No.) | (No.) | (mm) | (mm) | (Kg/Km) | (Kg/Km) | (Kg/Km) | (KN) | (Ω/Km) | (Ampere) | (Ampere) | (Ampere) |
| 320 | 322.26 | 52.49 | 374.75 | 20 | 2 | 7 | 3.09 | 22.88 | 888.49 | 374.31 | 1262.80 | 100.95 | 0.0876 | 596 | 1039 | 1287 |
| 340 | 336.85 | 54.90 | 391.75 | 20 | 2 | 7 | 3.16 | 23.38 | 928.73 | 391.46 | 1320.19 | 105.55 | 0.0838 | 612 | 1069 | 1324 |
| 390 | 389.25 | 50.81 | 440.06 | 20 | 2 | 7 | 3.04 | 24.72 | 1073.18 | 362.29 | 1435.47 | 109.47 | 0.0731 | 662 | 1163 | 1442 |
| 405 | 402.83 | 52.15 | 454.98 | 20 | 2 | 7 | 3.08 | 25.14 | 1110.62 | 371.89 | 1482.51 | 112.86 | 0.0706 | 676 | 1189 | 1475 |
| 480 | 479.69 | 47.20 | 526.89 | 35 | 3 | 7 | 2.93 | 26.98 | 1329.03 | 336.55 | 1665.58 | 123.00 | 0.0600 | 733 | 1298 | 1613 |
| 490 | 489.57 | 63.55 | 553.13 | 24 | 2 | 7 | 3.40 | 27.70 | 1349.78 | 453.18 | 1802.96 | 136.19 | 0.0581 | 759 | 1347 | 1676 |
| 525 | 523.67 | 26.85 | 550.53 | 30 | 3 | 7 | 2.21 | 27.50 | 1450.88 | 191.47 | 1642.35 | 107.39 | 0.0556 | 763 | 1354 | 1685 |
| 590 | 586.76 | 41.28 | 628.03 | 33 | 3 | 7 | 2.74 | 29.40 | 1625.66 | 294.31 | 1919.97 | 131.16 | 0.0494 | 820 | 1464 | 1825 |
| 625 | 625.07 | 79.63 | 704.69 | 38 | 3 | 19 | 2.31 | 31.32 | 1731.79 | 569.72 | 2301.51 | 177.43 | 0.0458 | 862 | 1549 | 1935 |
| 640 | 636.97 | 44.03 | 681.00 | 35 | 3 | 7 | 2.83 | 30.60 | 1764.78 | 313.97 | 2078.75 | 141.60 | 0.0455 | 860 | 1542 | 1925 |
| 680 | 676.24 | 85.95 | 762.20 | 39 | 3 | 19 | 2.40 | 32.58 | 1873.58 | 614.97 | 2488.55 | 191.75 | 0.0423 | 903 | 1630 | 2037 |
| 690 | 688.96 | 47.52 | 736.48 | 36 | 3 | 7 | 2.94 | 31.80 | 1908.82 | 338.85 | 2247.67 | 151.77 | 0.0421 | 899 | 1620 | 2024 |
| 725 | 725.09 | 91.78 | 816.87 | 39 | 3 | 19 | 2.48 | 33.72 | 2008.91 | 656.66 | 2665.57 | 205.21 | 0.0395 | 940 | 1703 | 2131 |
| 730 | 726.41 | 91.78 | 818.19 | 39 | 3 | 19 | 2.48 | 33.75 | 2012.56 | 656.66 | 2669.22 | 205.41 | 0.0394 | 941 | 1705 | 2134 |
| 740 | 737.40 | 51.14 | 788.54 | 36 | 3 | 7 | 3.05 | 32.92 | 2043.02 | 364.68 | 2407.70 | 162.72 | 0.0393 | 936 | 1692 | 2117 |
| 780 | 776.92 | 98.56 | 875.49 | 39 | 3 | 19 | 2.57 | 34.90 | 2152.52 | 705.18 | 2857.70 | 218.33 | 0.0368 | 979 | 1780 | 2231 |
| 790 | 789.13 | 54.55 | 843.69 | 36 | 3 | 7 | 3.15 | 34.05 | 2186.36 | 388.98 | 2575.34 | 173.95 | 0.0367 | 973 | 1767 | 2213 |
| 820 | 821.87 | 108.79 | 930.65 | 39 | 3 | 19 | 2.70 | 36.00 | 2277.05 | 778.33 | 3055.38 | 235.56 | 0.0348 | 1012 | 1847 | 2316 |
| 840 | 839.80 | 58.07 | 897.88 | 36 | 3 | 7 | 3.25 | 35.14 | 2326.74 | 414.07 | 2740.81 | 185.14 | 0.0345 | 1008 | 1837 | 2304 |
| 880 | 876.90 | 111.22 | 988.11 | 42 | 3 | 19 | 2.73 | 37.10 | 2429.50 | 795.72 | 3225.22 | 246.40 | 0.0326 | 1050 | 1923 | 2414 |
| 890 | 891.08 | 61.70 | 952.78 | 42 | 3 | 7 | 3.35 | 36.18 | 2468.81 | 439.95 | 2908.76 | 195.42 | 0.0325 | 1043 | 1907 | 2394 |
| 900 | 901.93 | 73.54 | 975.47 | 42 | 3 | 19 | 2.22 | 36.70 | 2498.85 | 526.19 | 3025.04 | 213.21 | 0.0320 | 1054 | 1931 | 2425 |
| 980 | 976.36 | 123.77 | 1100.13 | 42 | 3 | 19 | 2.88 | 39.12 | 2705.08 | 885.56 | 3590.64 | 274.28 | 0.0293 | 1115 | 2056 | 2587 |
| 990 | 987.86 | 68.90 | 1056.76 | 42 | 3 | 7 | 3.54 | 38.10 | 2736.95 | 491.27 | 3228.22 | 217.12 | 0.0293 | 1105 | 2035 | 2560 |
