LM Cables is a leading manufacturer of TAAAC Conductor in the field of power transmission and distribution
With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
LM Cables's TAAAC Conductor have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.
In this page, we'll introduce TAAAC Conductor and their advantages, applications, standards and frequently asked questions.
TAAAC – The full name: Thermal Resistant Aluminum-alloy Conductors. Urban network capacity transformation, substation, power plant construction and general lines.
Compared with conventional ACSR:
1.Long-term working temperature of 150℃, short-term temperature up to 180℃, so that the continuous allowable carrying capacity of the same specification of ordinary wire 1.5~1.6 times.
2.Under normal temperature, with ordinary aluminum wire has the same strength, high temperature operation mechanical strength retention rate can be maintained at more than 90%.
3.Compared with ordinary aluminum wire, it has the same creep properties at room temperature or high temperature.
4.There is no significant difference between the salt spray test in laboratory and the outdoor air exposure test.
5.Installation and maintenance are the same as ordinary wire installation procedures, without any special tools, tooling, installation and maintenance are convenient, and the cost is low.
TAAAC,TAAAC Cable,TAAAC Conductor,TAL cable,TAL Conductor,Thermal Resistant Aluminum-alloy Conductors.

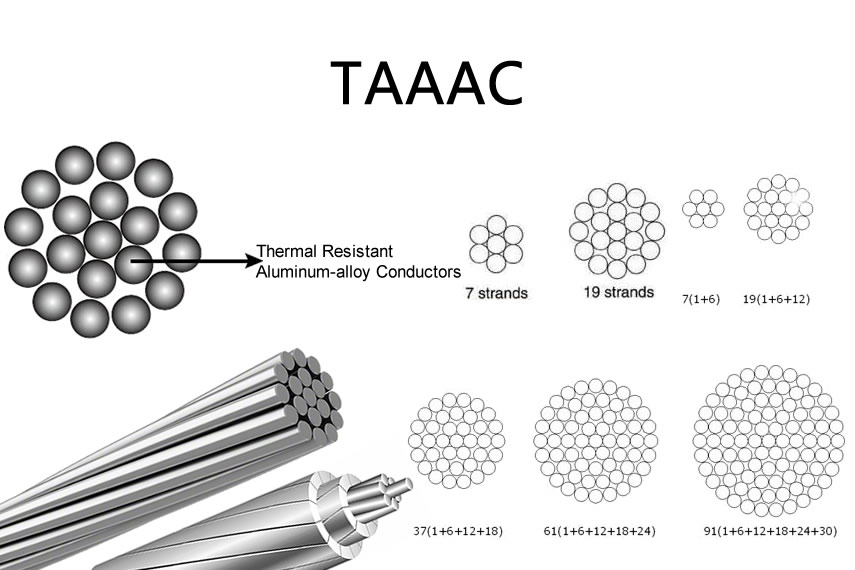

Constuction:
Thermal resistant aluminum alloy wires (TAL), concentric stranded
YTOP can produce TAAAC Cable according to various domestic and international standards and customer requirements, including GB, IEC, ASTM and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.
Get all the answers to the most frequently asked questions (FAQs) regarding TAAAC Cable sizes,TAAAC Cable full form,TAAAC Conductor size chart,TAAAC Conductor chart,TAAAC Conductor sizes,TAAAC Conductor size chart,TAAAC Conductor full form,TAAAC Conductor ampacity,TAAAC Conductor diameter,TAAAC Conductor types,TAAAC Conductor data sheet and much, much more.
| Cross Sectional area | Na/Dia of wire | Over all diameter | Net weight | DC conduvtorResistance at 20℃，max | Calcuated breaking load min | Current Carrying capacity | Standard Delivery lenght | |
|---|---|---|---|---|---|---|---|---|
| mm² | Pcs/mm | mm | Kg/km | Ω/km | kgf | n | A | m |
| 150 | 19/3.20 | 16 | 419 | 0.1910 | 2270 | 22268 | 700 | 5000 |
| 200 | 19/3.70 | 18.5 | 560 | 0.1430 | 3030 | 29724 | 850 | 5000 |
| 240 | 19/4.00 | 20 | 655 | 0.1220 | 3490 | 34236 | 945 | 3000 |
| 300 | 37/3.20 | 22.4 | 821 | 0.0958 | 4430 | 43458 | 1090 | 3000 |
| 400 | 37/3.70 | 25.9 | 1097 | 0.0737 | 5890 | 57780 | 1325 | 2000 |
| 510 | 37/4.20 | 29.4 | 1414 | 0.0571 | 7460 | 73182 | 1565 | 2000 |
| 660 | 61/3.70 | 33.3 | 1812 | 0.0448 | 9720 | 95353 | 1840 | 1500 |
| 850 | 61/4.20 | 37.8 | 2335 | 0.0347 | 12300 | 120663 | 2175 | 1000 |
| 980 | 91/3.70 | 40.7 | 2716 | 0.0302 | 14500 | 142245 | 2380 | 1000 |
| 1030 | 91/3.80 | 41.8 | 2865 | 0.0286 | 15320 | 150289 | 2465 | 1000 |
| 1260 | 91/4.20 | 46.2 | 3501 | 0.0234 | 18350 | 180013 | 2800 | 500 |
| NominalCross sectionarea | Structure[number] | Structure[diameter of wire] | Calculation area crosscestion | Approx.Diameter of conductor | Min.breakingstrength | DCResistance of conductor at 20℃ | ApproxMass ofconductor | CurrentCarryingcapacity |
|---|---|---|---|---|---|---|---|---|
| mm² | n | mm | mm² | mm | kN | Ω/km | Kg/km | A |
| 120 | 19 | 2.80 | 117.0 | 14.00 | 17.5 | 0.2493 | 320.1 | 566 |
| 150 | 19 | 3.15 | 148.1 | 15.75 | 22.2 | 0.1970 | 405.1 | 659 |
| 200 | 19 | 3.65 | 198.8 | 18.25 | 29.2 | 0.1467 | 543.9 | 798 |
| 240 | 19 | 4.00 | 238.8 | 20.00 | 34.2 | 0.1220 | 654.5 | 897 |
| 300 | 37 | 3.20 | 297.6 | 22.40 | 44.5 | 0.0986 | 816.0 | 1036 |
| 400 | 37 | 3.70 | 397.8 | 25.90 | 58.0 | 0.0737 | 1097.0 | 1258 |
| 510 | 37 | 4.20 | 512.6 | 29.40 | 73.3 | 0.0571 | 1413.0 | 1491 |
| 660 | 61 | 3.70 | 655.9 | 33.30 | 95.6 | 0.0448 | 1812.0 | 1753 |
| 850 | 61 | 4.20 | 845.1 | 37.80 | 120.9 | 0.0342 | 2334.0 | 2073 |
| 980 | 61 | 3.70 | 978.4 | 40.70 | 142.7 | 0.0302 | 2714.0 | 2272 |
| 1030 | 91 | 3.80 | 1032.1 | 41.80 | 150.5 | 0.0286 | 2864.0 | 2353 |
| 1260 | 91 | 4.20 | 1260.8 | 46.20 | 180.3 | 0.0234 | 3499.0 | 2672 |
| 1600 | 127 | 4.00 | 1595.9 | 52.00 | 228.5 | 0.0186 | 4440.0 | 3083 |
| 2020 | 127 | 4.50 | 2019.5 | 58.50 | 289.0 | 0.0147 | 5616.0 | 3540 |
| 2500 | 127 | 5.00 | 2493.7 | 65.00 | 357.0 | 0.0118 | 6937.0 | 3988 |
Delivers high-quality TAAAC Conductor to customers worldwide.
