TWISTED PAIR (AAC/TP ACSR/TP) Manufacturer

LM Cables is a leading manufacturer of TWISTED PAIR (AAC/TP ACSR/TP) in the field of power transmission and distribution

With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

LM Cables's TWISTED PAIR (AAC/TP ACSR/TP) have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.

In this page, we'll introduce TWISTED PAIR (AAC/TP ACSR/TP) and their advantages, applications, standards and frequently asked questions.

Get Latest Price Email to us

What’s TWISTED PAIR (AAC/TP ACSR/TP)?

TP Conductor bare aluminum construction, is designed for use in overhead applications subject to Aeolian vibration and galloping due to wind and ice. TP Conductor can be strung to the maximum allowable tension limits without the need for additional vibration protection.
TP Conductor is composed of two identical bare conductors twisted together with a left-hand lay. This gives the cable a rectangular spiral shape. This spiral shape disrupts the forces created by steady cross winds which cause cable vibration, by presenting a continuously changing projected cable diameter to the wind. This spiral shape, together with less torsional stiffness and varying bending stiffness also reduces or eliminates cable galloping due to combined ice and wind loads.

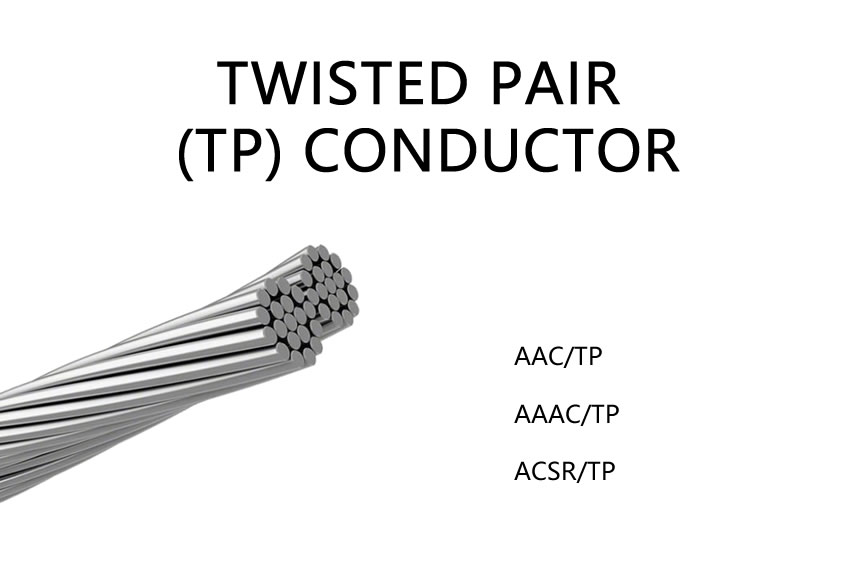

TWISTED PAIR (AAC/TP ACSR/TP)

Also Known As:

Twisted Pair (TP) Conductor,TWISTED PAIR CONDUCTOR,AAC/TP,ACSR/TP

TWISTED PAIR (AAC/TP ACSR/TP)

Want to know if TWISTED PAIR (AAC/TP ACSR/TP) is right for your business?

Book a Consultation
TWISTED PAIR (AAC/TP ACSR/TP)

TWISTED PAIR (AAC/TP ACSR/TP) Standards

  • B-911/B-911M For Twisted Pair Conductor.
  • B-231 Aluminum Conductor, Concentric-Lay Stranded.
  • B-231 Aluminum Conductors, Concentric-Lay-Stranded
  • B-232 Aluminum Conductor, Concentric-Lay Stranded, Coated Steel Reinforced (ACSR).
  • B-399 Concentric-Lay Stranded 6201-T81 Aluminum Alloy Conductors.
  • B-524 Concentric-Lay Stranded Aluminum Conductors, Aluminum Alloy Reinforced (ACAR, 1350/6201)
  • B-779 Shaped Wire Compact Concentric-Lay Stranded Aluminum Conductors, Steel Reinforced (ACSR/TW)

TWISTED PAIR (AAC/TP ACSR/TP) Specifications:

LM Cables can produce TWISTED PAIR CONDUCTOR(AAC/TP ACSR/TP) according to various domestic and international standards and customer requirements, including ASTM IEC and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.

Code Conductor
Type 		Construction Total Kcmil Stranding
Aluminum 		Stranding
Steel 		Outer
Dimension 		Equivalent Diameter Weight
(lb/1000 ft)
AL 		Weight
(lb/1000 ft)
STL 		Weight
(lb/1000 ft)
TOTAL 		Rated
Breaking
Strength 		Rating
Lily TP AAC 2x#3 105.2 7x0.0867 0.260x0.520 Inches0.426 Inches99.0 Lbs 99.0 Lbs2180 Lbs272 Amps
Ames TP AAAC 2x#2 154.9 7x0.1052 0.316x0.632 Inches0.517 Inches145.4 Lbs 145.4 Lbs5600 Lbs328 Amps
Swallow TP ACSR 2x#3 105.2 6x0.0937 1x0.0937 0.281x0.562 Inches0.460 Inches98.4 Lbs46.4 Lbs144.8 Lbs4600 Lbs275 Amps
Iris TP AAC 2x#2 132.7 7x0.0974 0.292x0.584 Inches0.478 Inches124.6 Lbs 124.6 Lbs2700 Lbs316 Amps
Sparrow TP ACSR 2x#2 132.7 6x0.1052 1x0.1052 0.316x0.631 Inches0.517 Inches124.0 Lbs59.0 Lbs183.0 Lbs5700 Lbs316 Amps
Pansy TP AAC 2x#1 167.4 7x0.1093 0.328x0.656 Inches0.537 Inches157.0 Lbs 157.0 Lbs3280 Lbs367 Amps
Robin TP ACSR 2x#1 167.4 6x0.1181 1x0.1181 0.355x0.710 Inches0.581 Inches156.4 Lbs74.0 Lbs230.4 Lbs7100 Lbs371 Amps
Poppy TP AAC 2x1/0 211.2 7x0.1228 0.368x0.736 Inches0.602 Inches198.2 Lbs 198.2 Lbs3980 Lbs426 Amps
Azusa TP AAAC 2x1/0 246.6 7x0.1327 0.396x0.796 Inches0.652 Inches231.4 Lbs 231.4 Lbs8920 Lbs437 Amps
Raven TP ACSR 2x1/0 211.2 6x0.1327 1x0.1327 0.396x0.790 Inches0.652 Inches197.2 Lbs93.2 Lbs290.4 Lbs8760 Lbs420 Amps
Aster TP AAC 2x2/0 266.2 7x0.1379 0.414x0.828 Inches0.678 Inches250.0 Lbs 250.0 Lbs5020 Lbs495 Amps
Anaheim TP AAAC 2x2/0 310.8 7x0.1490 0.447x0.894 Inches0.732 Inches291.8 Lbs 291.8 Lbs10780 Lbs510 Amps
Quail TP ACSR 2x2/0 266.2 6x0.1489 1x0.1489 0.447x0.894 Inches0.732 Inches248.6 Lbs117.6 Lbs366.2 Lbs10600 Lbs484 Amps
Phlox TP AAC 2x3/0 335.6 7x0.1548 0.464x0.926 Inches0.760 Inches315.0 Lbs 315.0 Lbs6080 Lbs574 Amps
Amherst TP AAAC 2x3/0 391.4 7x0.1672 0.502x1.004 Inches0.822 Inches367.4 Lbs 367.4 Lbs13580 Lbs592 Amps
Pigeon TP ACSR 2x3/0 335.6 6x0.1672 1x0.1672 0.502x1.004 Inches0.822 Inches313.4 Lbs148.2 Lbs462.0 Lbs13240 Lbs582 Amps
Oxlip TP AAC 2x4/0 423.2 7x0.1739 0.552x1.044 Inches0.854 Inches397.2 Lbs 397.2 Lbs7660 Lbs667 Amps
Alliance TP AAAC 2x4/0 493.8 7x0.1878 0.563x1.126 Inches0.922 Inches463.6 Lbs 463.6 Lbs17120 Lbs692 Amps
Penguin TP ACSR 2x4/0 423.2 6x0.1878 1x0.1878 0.563x1.126 Inches0.922 Inches395.4 Lbs188.8 Lbs582.2 Lbs16700 Lbs642 Amps
Jaeger TP ACSR 2x228.2 456.4 18x0.1126 1x0.1126 0.536x1.126 Inches0.922 Inches428.5 Lbs67.1 Lbs495.6 Lbs12200 Lbs720 Amps
Daisy TP AAC 2x266.8 533.6 7x0.1953 0.586x1.172 Inches0.959 Inches501.0 Lbs 501.0 Lbs9700 Lbs774 Amps
Butte TP AAAC 2x266.8 533.6 19x0.1283 0.642x1.284 Inches1.051 Inches587.2 Lbs 587.2 Lbs22000 Lbs810 Amps
Waxwing TP ACSR 2x266.8 533.6 18x0.1217 1x0.1217 0.609x1.218 Inches0.997 Inches501.0 Lbs78.6 Lbs580.0 Lbs13800 Lbs789 Amps
Partridge TP ACSR 2x266.8 533.6 26x0.1013 7x0.0788 0.642x1.284 Inches1.051 Inches504.0 Lbs230.0 Lbs734.0 Lbs22600 Lbs810 Amps
Tulip TP AAC 2x336.4 672.8 19x0.1331 0.666x1.332 Inches1.090 Inches632.0 Lbs 632.0 Lbs12300 Lbs902 Amps
Merlin TP ACSR 2x336.4 672.8 18x0.1387 1x0.1367 0.684x1.368 Inches1.120 Inches632.0 Lbs100.0 Lbs732.0 Lbs17400 Lbs917 Amps
Linnet TP ACSR 2x336.4 672.8 26x0.1137 7x0.0884 0.721x1.442 Inches1.180 Inches634.0 Lbs292.0 Lbs926.0 Lbs28200 Lbs923 Amps
Canna TP AAC 2x397.5 795 19x0.1447 0.724x1.448 Inches1.185 Inches746.0 Lbs 746.0 Lbs14200 Lbs984 Amps
Chickadee TP ACSR 2x397.5 795 18x0.1486 1x0.1486 0.743x1.486 Inches1.216 Inches746.0 Lbs118.0 Lbs864.0 Lbs19900 Lbs1001 Amps
Ptarmigan TP ACSR 2x397.5 795 20x0.1400 7x0.0626 0.752x1.504 Inches1.231 Inches747.0 Lbs146.0 Lbs893.0 Lbs22200 Lbs1007 Amps
Ibis TP ACSR 2x397.5 795 26x0.1236 7x0.0961 0.783x1.566 Inches1.282 Inches750.0 Lbs344.0 Lbs1094 Lbs32600 Lbs1030 Amps
Cosmos TP AAC 2x477.0 954 19x0.1584 0.793x1.586 Inches1.298 Inches896.0 Lbs 896.0 Lbs16700 Lbs1108 Amps
Pelican TP ACSR 2x447.0 954 18x0.1628 1x0.1628 0.814x1.628 Inches1.333 Inches896.0 Lbs140.0 Lbs1036.0 Lbs23600 Lbs1128 Amps
Taller TP ACSR 2x477.0 954 20x0.1544 7x0.0686 0.823x1.647 Inches1.347 Inches895.0 Lbs175.0 Lbs1070.0 Lbs26400 Lbs1134 Amps
Flicker TP ACSR 2x477.0 954 24x0.1410 7x0.0940 0.846x1.692 Inches1.385 Inches900.0 Lbs328.0 Lbs1228 Lbs34400 Lbs1153 Amps
Hawk TP ACSR 2x477.0 954 26x0.1354 7x0.1053 0.858x1.716 Inches1.405 Inches900.0 Lbs414.0 Lbs1314.0 Lbs39000 Lbs1162 Amps
Dahila TP AAC 2x556.5 1113 19x0.1711 0.856x1.712 Inches1.401 Inches1045.0 Lbs 1045.0 Lbs19500 Lbs1224 Amps
Flycatcher TP ACSR 2x516.8 1033.5 18x0.1694 1x0.1694 0.847x1.694 Inches1.387 Inches970.0 Lbs152.0 Lbs1122.0 Lbs25500 Lbs1188 Amps
Creeper TP ACSR 2x516.8 1033.5 20x0.1607 7x0.0714 0.857x1.714 Inches1.403 Inches974.0 Lbs190.0 Lbs1164 Lbs28300 Lbs1194 Amps
Osprey TP ACSR 2x556.5 1113 18x0.1758 1x0.1758 0.879x1.758 Inches1.439 Inches1044.0 Lbs164.0 Lbs1208.0 Lbs27400 Lbs1247 Amps
Kinglet TP ACSR 2x556.5 1113 20x0.1667 7x0.0741 0.889x1.778 Inches1.455 Inches1050.0 Lbs204.0 Lbs1254.0 Lbs30500 Lbs1254 Amps
Parakeet TP ACSR 2x556.5 1113 24x0.1523 7x0.1015 0.914x1.828 Inches1.496 Inches1050.0 Lbs384.0 Lbs1434.0 Lbs39600 Lbs1275 Amps
Dove TP ACSR 2x556.5 1113 26x0.1463 7x0.1138 0.927x1.854 Inches1.518 Inches1050.0 Lbs482.0 Lbs1532.0 Lbs45200 Lbs1290 Amps
Day Lily TP AAC 2x596.0 1192 19x0.1771 0.886x1.771 Inches1.450 Inches1119.0 Lbs 1119.0 Lbs20400 Lbs1279 Amps
Kittiwake TP ACSR 2x596.0 1192 18x0.1820 1x0.1820 0.910x1.820 Inches1.490 Inches1119.0 Lbs175.0 Lbs1294.0 Lbs29800 Lbs1304 Amps
Squab TP ACSR 2x605.0 1210 20x0.1739 7x0.0773 0.928x1.855 Inches1.518 Inches1141.0 Lbs222.0 Lbs1383.0 Lbs33200 Lbs1324 Amps
Orchid TP AAC 2x636.0 1272 37x0.1311 0.918x1.836 Inches1.503 Inches1194.0 Lbs 1194.0 Lbs22800 Lbs1335 Amps
Kingbird TP ACSR 2x636.0 1272 18x0.1880 1x0.1880 0.940x1.880 Inches1.539 Inches1194.0 Lbs186.0 Lbs1380.0 Lbs31400 Lbs1359 Amps
Turacos TP ACSR 2x636.0 1272 20x0.1783 7x0.0792 0.951x1.902 Inches1.557 Inches1200.0 Lbs234.0 Lbs1434.0 Lbs34800 Lbs1368 Amps
Rook TP ACSR 2x636.0 1272 24x0.1626 7x0.1085 0.977x1.954 Inches1.599 Inches1200.0 Lbs438.0 Lbs1638.0 Lbs45400 Lbs1391 Amps
Gloxinia TP AAC 2x666.6 1333 37x0.1342 0.939x1.879 Inches1.538 Inches1251.0 Lbs 1251.0 Lbs23800 Lbs1375 Amps
Siskin TP ACSR 2x666.6 1334 20x0.1826 7x0.0812 1.974x1.948 Inches1.594 Inches1258.0 Lbs246.0 Lbs1504.0 Lbs36600 Lbs1410 Amps
Flamingo TP ACSR 2x666.6 1334 24x0.1667 7x0.1111 1.000x2.000 Inches1.637 Inches1258.0 Lbs450.0 Lbs1718.0 Lbs47600 Lbs1434 Amps
Violet TP AAC 2x715.5 1431 37x0.1391 1.974x1.945 Inches1.594 Inches1343.0 Lbs 1343.0 Lbs25600 Lbs1439 Amps
Dunlin TP ACSR 2x715.5 1431 20x0.1891 7x0.0840 1.005x2.016 Inches1.650 Inches1350.0 Lbs262.0 Lbs1612.0 Lbs39200 Lbs1474 Amps
Arbutus TP AAC 2x795.0 1590 37x0.1466 1.026x2.052 Inches1.680 Inches1493.0 Lbs 1493.0 Lbs27800 Lbs1536 Amps
Tern TP ACSR 2x795.0 1590 45x0.1329 7x0.0886 1.064x2.128 Inches1.742 Inches1500.0 Lbs292.0 Lbs1792.0 Lbs44200 Lbs1577 Amps
Drake TP ACSR 2x795.0 1590 26x0.1749 7x0.1360 1.108x2.216 Inches1.814 Inches1500.0 Lbs688.0 Lbs2188.0 Lbs63000 Lbs1620 Amps
Cockscomb TPAAC2x900.0180037x0.1580 1.092x2.184 Inches 1.788 Inches 1690.0 Lbs 1690.0 Lbs 30800 Lbs 1658 Amps
Surfbird TPACSR2x874.5174920x0.20917x0.09291.115x2.23 Inches 1.825 Inches 1650.0 Lbs 322.0 Lbs 1972.0 Lbs 47600 Lbs 1674 Amps
Twinstone TPACSR2x900.0180020x0.21217x0.09431.131x2.262 Inches 1.851 Inches 1698.0 Lbs 332.0 Lbs 2030.0 Lbs 48200 Lbs 1703 Amps
Bluebell TPAAC2x1033.5206737x0.1671 1.170x2.340 Inches 1.915 Inches 1940.0 Lbs 1940 Lbs 35400 Lbs 1801 Amps
Marigold TPAAC2x1113.5222661x0.1351 1.216x2.432 Inches 1.991 Inches 2090.0 Lbs 2090.0 Lbs 39400 Lbs 1882 Amps
Ortolan TPACSR2x1033.5206745x0.15157x0.10101.212x2.424 Inches 1.984 Inches 1948.0 Lbs 380.0 Lbs 2328.0 Lbs 55400 Lbs 1853 Amps
Bluejay TPACSR2x1113.0222645x0.15737x0.10491.258x2.516 Inches 2.059 Inches 2100.0 Lbs 410.0 Lbs 2510.0 Lbs 59600 Lbs 1939 Amps
