AAAC Conductor Manufacturer

LM Cables is a leading manufacturer of AAAC Conductor in the field of power transmission and distribution

With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

LM Cables's AAAC Conductor have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.

In this page, we'll introduce AAAC Conductor and their advantages, applications, standards and frequently asked questions.

What’s AAAC Conductor?

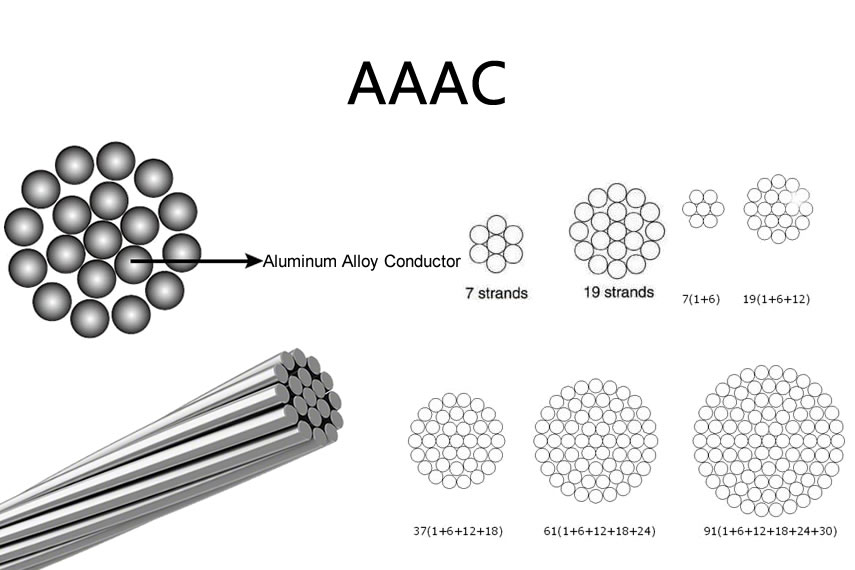

AAAC stands for All Aluminum Alloy Conductor, which is a type of overhead power transmission cable made of aluminum alloy wires. Unlike traditional overhead cables, which are typically made of aluminum or steel wires, AAAC conductors are made of an alloy of aluminum with other elements like magnesium, silicon, or zinc. This alloy composition provides several advantages over traditional cables, including improved strength, corrosion resistance, and better electrical conductivity.

AAAC conductors are often used in high-voltage power transmission lines, as they can carry higher currents and have lower resistance than equivalent size cables made of aluminum or steel. They are also commonly used in coastal and humid areas where corrosion resistance is essential.

Also Known As:

aaac wire,aaac cable,aaac conductor,All Aluminum Alloy Conductor,All Aluminum Alloy Cable,A2(AASC) Conductor,AASC Conductor

AAAC conductors provide a higher strength to weight ratio than traditional AAC conductors, and better corrosion resistance than ACSR conductors.

LM Cables can manufacture & supply AAAC on Non returnable wooden/steel reels or Returnable steel reels.

AAAC Conductor Standards

LM Cables can produce AAAC Wire according to various domestic and international standards and customer requirements, including BS, IEC, ASTM,DIN and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.

ASTM-B399
BS-3242
IEC61089
DIN48201
Canadian Standard

AAAC Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding AAAC Cable sizes,AAAC Cable full form,AAAC Conductor size chart,AAAC Conductor chart,AAAC Conductor sizes,AAAC Conductor size chart,AAAC Conductor full form,AAAC Conductor ampacity,AAAC Conductor diameter,AAAC Conductor types,AAAC Conductor data sheet and much, much more.

AAAC Conductor ASTM-B399 Standard

Code Word	Size (KCMIL)	Stranding	Individual Wires Diameter (ins.)	Complete Cable Diameter (ins.)	Weight Per 1000 Feet (lbs.)	Rated Strength (lbs.)	Resistance OHMS/1000ft. DC @ 20°C	Resistance OHMS/1000ft. AC @ 75°C	Allowable Ampacity+ (Amps)	ACSR With Equivalent Diameter Size	ACSR With Equivalent Diameter Stranding (Al/Stl)
Akron	30.58	7	.0661	.1980	28.5	1110	.659	.785	107	6	6/1
Alton	48.69	7	.0834	.2500	45.4	1760	.414	.493	143	4	6/1
Ames	77.47	7	.1052	.3160	72.2	2800	.260	.310	191	2	6/1
Azusa	123.3	7	.1327	.3980	115.0	4460	.163	.195	256	1/0	6/1
Anaheim	155.4	7	.1490	.4470	144.9	5390	.130	.154	296	2/0	6/1
Amherst	195.7	7	.1672	.5020	182.5	6790	.103	.123	342	3/0	6/1
Alliance	246.9	7	.1878	.5630	230.2	8560	.0816	.0973	395	4/0	6/1
Butte	312.8	19	.1283	.6420	291.7	11000	.0644	.0769	460	266.8	26/7
Canton	394.5	19	.1441	.7200	367.9	13300	.0511	.0610	532	336.4	26/7
Cairo	465.4	19	.1565	.7830	434.0	15600	.0433	.0518	590	397.5	26/7
Darien	559.5	19	.1716	.8580	521.7	18800	.0360	.0431	663	477.0	26/7
Elgin	652.4	19	.1853	.9270	608.4	21900	.0309	.0371	729	556.5	26/7
Flint	740.8	37	.1415	.9900	690.8	24400	.0272	.0327	790	636.0	26/7
Greeley	927.2	37	.1583	1.1080	864.6	30500	.217	.0263	908	795.0	26/7

AAAC Conductor BS-3242 Standard

Code Word	Conductor size	Stranding	Sectional Area	Diameter of Conductor	Linear Density	Rated Strength	D.C. Resistance at 20°C	Curren Rating
	mm 2	No. /mm	mm 2	mm	kg/km	kgf	Ω/km	A
Box	15	7/1.85	18.82	5.55	51	537	1.7495	93
Acacia	20	7/2.08	23.79	6.24	65	680	1.384	110
Almond	25	7/2.34	30.1	7.02	82	861	1.0934	128
Cedar	30	7/2.54	35.47	7.62	97	1014	0.9281	132
Deodar	35	7/2. 77	42.18	8.31	115	1205	0.7804	148
Fir	40	7/2.95	47.84	8.85	131	1367	0.688	161
Hazel	50	7/3.30	59.87	9.9	164	1711	0.5498	184
Pine	60	7/3.61	71.65	10.83	196	2048	0.4594	204
Holly	70	7/3.91	84.05	11.73	230	2402	0.3917	222
Willow	75	7/4. 04	89.73	12.12	245	2565	0.3669	233
	80	7/4.19	96.52	12.57	264	2758	0.3441	250
	90	7/4.44	108	13.32	298	3112	0.3023	260
Oak	100	7/4.65	118.9	13.95	325	3398	0.2769	272
	100	19/2.82	118.7	14.1	326	3393	0.2787	270
Mulberry	125	19/3.18	150. 90	15.9	415	4312	0.2192	319
Ash	150	19/3.48	180.7	17.4	497	5164	0.1831	354
Elm	175	19/3.76	211	18.8	580	6030	0.1568	385
Poplar	200	37/2.87	239.4	20.09	659	8841	0.1385	414
	225	37/3.05	270.3	21.35	744	7724	0.1227	430
Sycamore	250	37/3.22	303.2	22.54	835	8664	0.1093	487
Upas	300	37/3.53	362.1	24.71	997	10350	0.09156	527
Walnut	350	37/3.81	421.8	26.67	1162	12053	0.0786	610
Yew	400	37/4.06	479	28.42	1319	13685	0.06921	629
Totara	425	37/4.14	498.1	28.98	1372	14233	0.06656	640
Rubus	500	61/3.50	586.9	31.5	1620	16771	0.05662	760
Araucaria	700	61/4.14	821.1	37.26	2266	23450	0.04047	842

AAAC Conductor IEC-61089 Standard

Code number	Area	Number of wires	Diameter of wire	Diameter of conductor	Linear mass	Rated strength	D.C. resistance
	mm 2		mm	mm	Kg/km	kN	Ω/km
16	18.6	7	1.84	5.52	50.8	6.04	1.7896
25	29	7	2.3	6.9	79.5	9.44	1.1453
40	46.5	7	2.91	8.73	127.1	15.1	0.7158
63	73.2	7	3.65	10.95	200.2	23.06	0.4545
100	11	19	2.79	13.95	319.3	37.76	0.2877
125	145	19	3.12	15.6	399.2	47.2	0.2302
160	18	19	3.53	17.65	511	58.56	0.1798
200	232	19	3.95	19.75	638.7	73.2	0.1439
250	290	19	4.41	22.05	798.4	91.5	0.1151
315	366	37	3.55	24.85	1008.4	115.29	0. 0916
400	465	37	4	28	1280.5	146.4	0.0721
450	523	37	4.24	29.68	1440.5	164.7	0.0641
500	581	37	4.47	31.29	1600.6	183	0.0577
560	651	61	3.69	33.21	1795.3	204.95	0.0516
630	732	61	3.91	35.19	2019.8	230.58	0.0458
710	825	61	4.15	37.35	2276.2	259.86	0.0407
800	930	61	4.4	39.6	2564.8	292.8	0.0361
900	1046	91	3.83	42.13	2888.3	329.4	0.0321
1000	1162	91	4.03	44.33	3209.3	366	0.0289
1120	1301	91	4.27	46.97	3594.4	409.92	0.0258

AAAC Conductor DIN-48201 Standard

Conductor size mm 2	Alloy area mm 2	Number of wires	Diameter of wire mm	Overall diameter of conductor mm	Linear mass kg/km	Rated tensile strength daN	Maximum resistance D.C. at 20 ℃ Ω/km	Current Rating A
16	15.89	7	1.7	5.1	43	444	2.091	105
25	24.25	7	2.1	6.3	66	677	1.3703	135
35	34.36	7	2.5	7.5	94	960	0.9669	170
50	49.48	7	3	9	135	1382	0.6714	210
50	48.35	19	1.8	9	133	1350	0.6905	210
70	65.81	19	2.1	10.5	181	1838	0.5073	255
95	93.27	19	2.5	12.5	256	2605	0.3579	320
120	116.99	19	2.8	14	322	3268	0.2854	365
150	147.11	37	2.25	15.8	406	4109	0.2274	425
185	181.62	37	2.5	17.5	500	5073	0.1842	490
240	242.54	61	2.25	20.3	670	6774	0.1383	585
300	299.43	61	2.5	22.5	827	8363	0.112	670
400	400.14	61	2.89	26	1104	11176	0.0838	810
500	499.63	61	3.23	29.1	1379	13960	0.06709	930
625	626.2	91	2.96	32.6	1732	17490	0.054	1075
800	802.09	91	3.35	36.9	2218	22402	0.0418	1255
1000	999.71	91	3.74	41.1	2767	27922	0.0335	1450

AAAC Conductor Canadian Standard

Conductor size	Stranding	Section area	Diameter of conductor	Linear mass	Rated strength	D.C. resistance at 20 ℃	Current Rating
MCM	No./mm	mm2	mm	Kg/km	kgf	Ω/km	A
19	7/1.32	9.5	3.96	26	290	3.416	55
24	7/1.48	12	4.44	33	360	2.71	69
30	7/1.66	15.2	4.98	41	460	2.148	79
38	7/1.86	19.1	5.58	52	580	1.703	93
48	7/2.09	24.1	6.27	66	730	1.352	108
60	7/2.35	30.4	7.05	83	920	1.072	126
76	7/2.64	38.3	7.92	105	1160	0.8494	139
95	7/2.96	48.3	8.88	132	1470	0.6742	161
120	7/3.33	61	9.99	166	1850	0.5344	186
152	7/3.74	76.8	11.22	210	2330	0.4238	211
192	7/4.20	97	12.6	265	2940	0.3355	242
241	7/4.72	122.3	14.15	334	3710	0.2666	276
241	19/2.86	122.3	14.3	335	3710	0.2678	280
304	19/3.21	154.1	16.05	423	4670	0.2125	321
342	19/3.41	173.4	17.05	475	5260	0.1889	343
384	19/3.61	194.4	18.05	533	5890	0.1684	369
453	19/3.92	229.7	19.6	629	6970	0.1423	404
544	19/4.30	275.7	21.5	756	8360	0.1187	451
570	37/3.15	288.8	22.05	796	8760	0.1137	464
635	37/3.33	321.5	23.31	885	9740	0.1026	497
725	37/3.56	367.4	24.92	1012	11140	0.0895	533
816	37/3.77	413.5	26.39	1140	12540	0.0795	577
856	37/3.86	433.7	27.02	1195	13140	0.0758	594
907	37/3.98	459.4	27.86	1266	13920	0.0714	614
997	37/4.16	505.2	29.12	1391	15320	0.065	648

Few More thing you should know

What’s the advantages of AAAC Conductor?

First of all, aaac has higher strength and corrosion resistance than aac and acsr conductor. The aaac conductor has high strength than aac conductor, that is to say, the aluminum alloy conductor allows a long span. And because there is no steel core in aluminum alloy conductor, the aaac has more excellent corrosion resistance than acsr. So it can even be used in sea coat area and polluted industrial areas. If the overhead line needs to cover a long distance and requires for high corrosion resistance, the all aluminum conductor, like conductor flint and aaac greeley will be your good choice.

Besides, the aluminum alloy conductor has excellent conductivity. On the one hand,the aaac cable has strong current carrying capacity. On the other hand, aaac wire is homogeneous, so there is lower electrical less during the transmission process. This performance is what we need.

Where can you get the high-quality aaac cable with best price?

Because the aaac wire owns the definitely advantages, and the aluminum is similar with aluminum alloy. So some conductor aaac manufacturers may use the aluminum to replace the aluminum alloy, or the quality of the aluminum alloy is not so good. For the long-term cooperation, we never do the things, which may break the customer. You can find in the aaac conductor catalogue. Galaxy Electric is indeed a very reliable company. In the aaac conductor price list, you may find the aaac conductor manufacturers india are very cheap. But you may know the cheapest aluminum is in China. And in China, the aluminum of Henan is the cheapest. Galaxy Electric is located in Henan, so choose Galaxy Electric, you can get the best price.

How to choose AAAC Conductor?

As we all know, Cable AAAC has different standards and types, so the demands of customers are different. Every AAAC wire has a code name or number. When you purchase the conductor AAAC, you just need speak the the code, the seller will know what you want. If you don’t know the exact code name, it doesn’t matter. As long as you know AAAC conductor specifications, as professional aac manufacturers, Galaxy Electric Group can customize for you.

Want to Know AAAC Conductor Price?

The price of AAAC conductor can vary widely depending on various factors, including the specific alloy composition, the size and length of the conductor, and the supplier’s location and pricing strategy. Other factors such as market demand, availability of raw materials, and transportation costs can also impact the price of AAAC conductor.
