ACAR – The full name: Aluminium Conductor Alloy Reinforced Aluminum Conductors. ACAR can be used as bare overhead transmission conductor or primary or secondary distribution conductor.

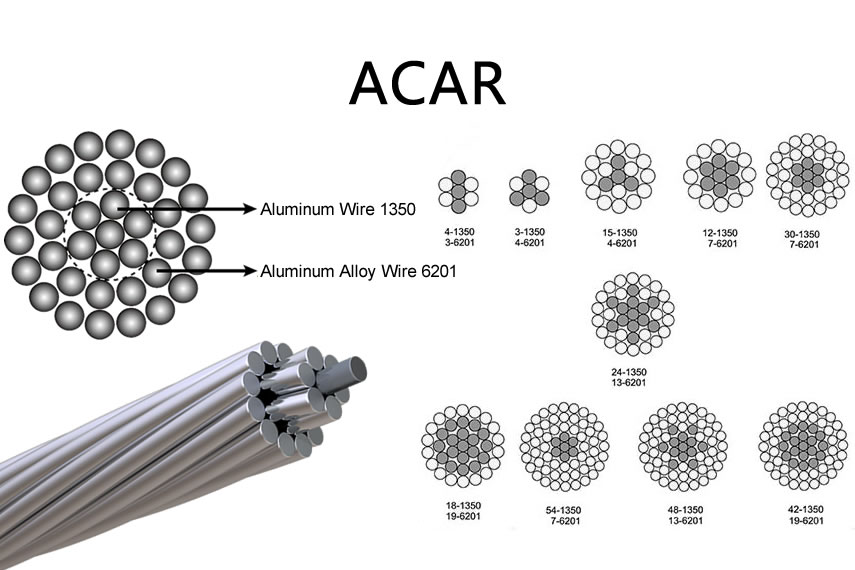

Aluminium Conductor Alloy Reinforced (ACAR) is formed by concentrically stranded wires of Aluminium 1350 on high strength Aluminium -Magnesium -Silicon(AlMgSi) alloy core. The number of wires of Aluminum1350 & AlMgSi alloy depends on the cable design. Though the general design comprises a stranded core of AlMgSi alloy strand, in certain cable constructions , the wires of AlMgSi alloy strands can be distributed in layers throughout the Aluminium 1350 strands.When higher capacity and strength for equal weight are prime line considerations, ACAR is the solution over ACSR due to its better strength-to-weight ratio.
Aluminium Conductor Alloy Reinforced Aluminum Conductors,acar conductor,acar cable,acar wire
LM Cables manufacture and supply ACSR Cable on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.
LM Cables can produce ACAR according to various domestic and international standards and customer requirements, including ASTM IEC and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.
Get all the answers to the most frequently asked questions (FAQs) regarding ACAR Cable sizes,ACAR Cable full form,ACAR Conductor size chart,ACAR Conductor chart,ACAR Conductor sizes,ACAR Conductor size chart,ACAR Conductor full form,ACAR Conductor ampacity,ACAR Conductor diameter,ACAR Conductor types,ACAR Conductor data sheet and much, much more.
| Item # | Size (kcmil) | Stranding (EC/6201) | Diameter Individual Wires 6201 (inches) | Diameter Individual Wires 1350 (inches) | Diameter Complete Cable (Inches) | Weight (lb/1000 ft) | Rated Strength (lbs) | Resistance DC@20 ºC (ohms) | Resistance AC@75 ºC (ohms) | Allowable Ampacity (amps) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACAR-355.0 | 355.0 | 12/7 | 0.1367 | 0.1367 | 0.6830 | 332.1 | 8500 | 0.0514 | 0.0624 | 519 |
| ACAR-465.9 | 465.9 | 12/7 | 0.1566 | 0.1566 | 0.783 | 435.8 | 11000 | 0.0392 | 0.0477 | 616 |
| ACAR-503.6 | 503.6 | 12/7 | 0.1628 | 0.1628 | 0.8140 | 471.1 | 11900 | 0.0362 | 0.0441 | 646 |
| ACAR-653.1 | 653.1 | 12/7 | 0.1854 | 0.1854 | 0.927 | 611.0 | 15400 | 0.0279 | 0.0342 | 760 |
| ACAR-739.8 | 739.8 | 30/7 | 0.1414 | 0.1414 | 0.990 | 692.7 | 15300 | 0.0240 | 0.0296 | 831 |
| ACAR-739.8 | 739.8 | 18/19 | 0.1414 | 0.1414 | 0.990 | 691.6 | 18800 | 0.0252 | 0.0308 | 814 |
| ACAR-853.7 | 853.7 | 30/7 | 0.1519 | 0.1519 | 1.063 | 799.3 | 17500 | 0.0208 | 0.0257 | 907 |
| ACAR-853.7 | 853.7 | 18/19 | 0.1519 | 0.1519 | 1.063 | 798.0 | 21500 | 0.0218 | 0.0268 | 890 |
| ACAR-927.2 | 927.2 | 30/7 | 0.1583 | 0.1583 | 1.108 | 868.2 | 19000 | 0.0192 | 0.0238 | 955 |
| ACAR-927.2 | 927.2 | 18/19 | 0.1583 | 0.1583 | 1.108 | 866.7 | 23400 | 0.0201 | 0.0247 | 936 |
| ACAR-1024.5 | 1024.5 | 30/7 | 0.1664 | 0.1664 | 1.165 | 959.3 | 20900 | 0.0173 | 0.0216 | 1015 |
| ACAR-1024.5 | 1024.5 | 18/19 | 0.1664 | 0.1664 | 1.165 | 957.7 | 25800 | 0.0182 | 0.0225 | 995 |
| ACAR-1081.0 | 1081.0 | 30/7 | 0.1709 | 0.1709 | 1.196 | 1012.1 | 22100 | 0.0164 | 0.0205 | 1048 |
| ACAR-1081.0 | 1081.0 | 18/19 | 0.1709 | 0.1709 | 1.196 | 1010.5 | 27200 | 0.0172 | 0.0213 | 1028 |
| ACAR-1109.0 | 1109.0 | 30/7 | 0.1731 | 0.1731 | 1.212 | 1038.4 | 22700 | 0.0160 | 0.0200 | 1065 |
| ACAR-1109.0 | 1109.0 | 18/19 | 0.1731 | 0.1731 | 1.212 | 1036.6 | 27900 | 0.0168 | 0.0208 | 1044 |
| ACAR-1172.0 | 1172.0 | 30/7 | 0.1780 | 0.1780 | 1.2460 | 1097.3 | 24000 | 0.0152 | 0.0190 | 1101 |
| ACAR-1172.0 | 1172.0 | 18/19 | 0.1780 | 0.1780 | 1.2460 | 1095.5 | 29500 | 0.0159 | 0.0198 | 1080 |
| ACAR-1197.0 | 1197.0 | 30/7 | 0.1799 | 0.1799 | 1.2590 | 1120.8 | 24500 | 0.0148 | 0.0187 | 1115 |
| ACAR-1197.0 | 1197.0 | 18/19 | 0.1799 | 0.1799 | 1.2590 | 1118.9 | 30200 | 0.0156 | 0.0194 | 1094 |
| ACAR-1280.0 | 1280.0 | 30/7 | 0.1860 | 0.1860 | 1.302 | 1198.5 | 26200 | 0.0139 | 0.0175 | 1160 |
| ACAR-1280.0 | 1280.0 | 18/19 | 0.1860 | 0.1860 | 1.302 | 1196.5 | 32200 | 0.0146 | 0.0182 | 1139 |
| ACAR-1361.0 | 1361.0 | 42/19 | 0.1494 | 0.1494 | 1.3440 | 1273.6 | 30300 | 0.0133 | 0.0168 | 1196 |
| ACAR-1527.0 | 1527.0 | 42/19 | 0.1582 | 0.1582 | 1.424 | 1428.8 | 33600 | 0.0118 | 0.0151 | 1314 |
| ACAR-1703.0 | 1703.0 | 42/19 | 0.1671 | 0.1671 | 1.504 | 1593.5 | 37500 | 0.0106 | 0.0137 | 1363 |
| ACAR-1933.0 | 1933.0 | 42/19 | 0.1780 | 0.1780 | 1.602 | 1808.8 | 42500 | 0.0094 | 0.0123 | 1465 |
| ACAR-2267.0 | 2267.0 | 42/19 | 0.1928 | 0.1928 | 1.735 | 2142.0 | 49900 | 0.0081 | 0.0108 | 1594 |
| ACAR-2493.0 | 2493.0 | 72/19 | 0.1655 | 0.1655 | 1.8210 | 2356.9 | 50400 | 0.0072 | 0.0099 | 1687 |
| ACAR-2493.0 | 2493.0 | 54/37 | 0.1655 | 0.1655 | 1.8210 | 2354.5 | 57600 | 0.0074 | 0.0101 | 1670 |
