ACSR Conductor Manufacturer

LM Cables is a leading manufacturer of ACSR Conductor in the field of power transmission and distribution

With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

LM Cables's ACSR Conductor have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.

In this page, we'll introduce ACSR Conductor and their advantages, applications, standards and frequently asked questions.

What’s ACSR Conductor?

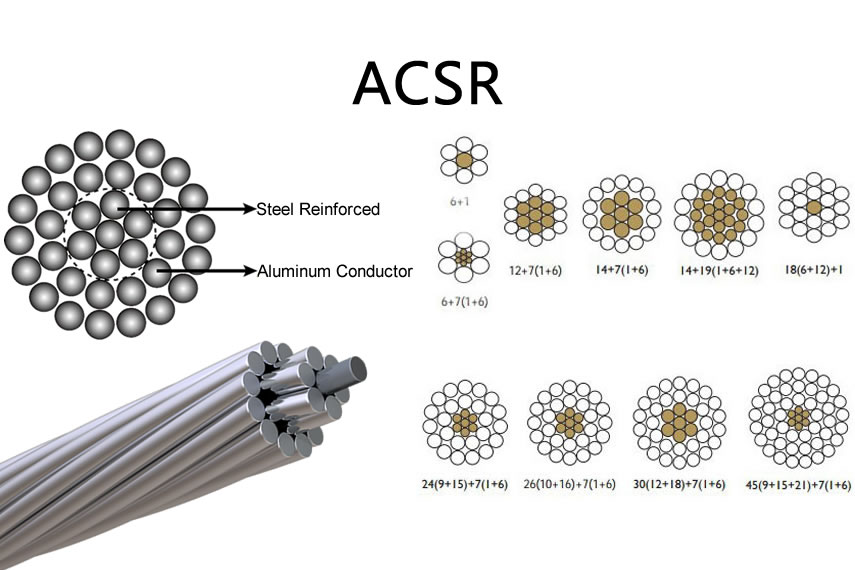

ACSR is a high-capacity stranded conductor which is mainly used for overhead power lines.
The term ACSR stands for “Aluminium Conductor Steel Reinforced is a stranded conductor including a number of aluminum wire layers on stimulated steel wire core. Here the steel wire core is a single wire that depends on the size. These are available in different galvanizations like class A, B & C for protecting the corrosion.
ACSR (aluminum conductor steel reinforced) has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.
You may also be interested in ACSR/AS (ACSR/AW) ACSR/TW
LM Cables manufacture and supply ACSR Cable on Non-Returnable wooden/steel reels or Returnable steel reels depending on customer requirement.

Also Known As:

ASC conductor,ACSR cable,ACSR wire,Composite conductor,ACSR conductor cable,ACSR overhead cable,Aluminium conductor steel core,Aluminium steel reinforced conductor,Aluminium stranded conductor with steel reinforcement,Aluminium reinforced conductor,Aluminium steel stranded conductor.

What are the applications of ACSR Conductor?

ACSR Conductor are widely used in power transmission lines, railways, and other industries that require high-strength and high-conductivity wires. They are especially suitable for long-distance transmission lines and harsh environments.

ACSR Conductor Standards

LM Cables can produce ACSR Wire according to various domestic and international standards and customer requirements, including GB, IEC, ASTM and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.

ASTM-B232
GB215
IEC61089
AS3607
DIN48204

ACSR Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding ACSR Cable sizes,ACSR Cable full form,ACSR Conductor size chart,ACSR Conductor chart,ACSR Conductor sizes,ACSR Conductor size chart,ACSR Conductor full form,ACSR Conductor ampacity,ACSR Conductor diameter,ACSR Conductor types,ACSR Conductor data sheet and much, much more.

ACSR Conductor ASTM-B232 Standard

Code	Size AWG	Stranding (AL/STL)	Diameter Individual Wire Aluminum (Inches)	Diameter Individual Wire Steel (Inches)	Diameter Steel Core (Inches)	Diameter Complete Cable (O.D.) (Inches)	Weight (lb/1000 ft) Aluminum (Lbs.)	Weight (lb/1000 ft) Steel (Lbs.)	Weight (lb/1000 ft) Total	Rated Breaking Strength (Lbs.)	Allowable Ampacity	Rating
Grouse	80.0	8/1	0.1000	0.1670	0.1670	0.367	75.1	73.9	149	5200	204 Amps	N/A
Petrel	101.8	12/7	0.0921	0.0921	0.2763	0.461	96.0	158.0	254	10400	237 Amps	N/A
Minorca	110.8	12/7	0.0961	0.0961	0.2883	0.481	104.5	172.1	276	11300	246 Amps	N/A
Leghorn	134.6	12/7	0.1059	0.1059	0.3177	0.530	127.0	208.9	336	13600	273 Amps	N/A
Guinea	159.0	12/7	0.1151	0.1151	0.3453	0.576	150.0	246.8	396	16000	297 Amps	N/A
Dotterel	176.9	12/7	0.1214	0.1214	0.3642	0.607	166.9	274.6	441	17300	312 Amps	N/A
Dorking	190.8	12/7	0.1261	0.1261	0.3783	0.631	180.0	296.3	476	18700	324 Amps	N/A
Brahma	203.2	16/19	0.1227	0.0977	0.4885	0.714	191.7	485.0	675	28400	341 Amps	N/A
Cochin	211.3	12/7	0.1327	0.1327	0.3981	0.664	199.3	328.2	527	20700	340 Amps	N/A
Turkey	6	6/1	0.0661	0.0661	0.0661	0.198	24.5	11.6	36.1	1190	N/A	105 Amps
Swan	4	6/1	0.0834	0.0834	0.0834	0.250	39.0	18.4	57.4	1860	N/A	140 Amps
Swanate	4	7/1	0.0772	0.1029	0.1029	0.257	39.0	28.0	67	2360	N/A	140 Amps
Sparrow	2	6/1	0.1052	0.1052	0.1052	0.316	62.0	29.3	91.3	2850	N/A	184 Amps
Sparate	2	7/1	0.0974	0.1299	0.1299	0.325	62.0	44.7	106.7	3640	N/A	184 Amps
Robin	1	6/1	0.1181	0.1181	0.1181	0.354	78.2	36.9	115.1	3550	N/A	212 Amps
Raven	1/0	6/1	0.1327	0.1327	0.1327	0.398	98.7	46.6	145.3	4380	N/A	242 Amps
Quail	2/0	6/1	0.1489	0.1489	0.1489	0.447	124.3	58.7	183	5300	N/A	276 Amps
Pigeon	3/0	6/1	0.1672	0.1672	0.1672	0.502	156.7	74.0	230.7	6620	N/A	315 Amps
Penguin	4/0	6/1	0.1878	0.1878	0.1878	0.563	197.7	93.4	291.1	8350	N/A	357 Amps
Waxwing	266.8	18/1	0.1217	0.1217	0.1217	0.609	250.3	39.2	289.5	6880	N/A	449 Amps
Partridge	266.8	26/7	0.1013	0.0788	0.2364	0.642	251.7	115.6	367.2	11300	N/A	475 Amps
Ostrich	300.0	26/7	0.1074	0.0835	0.2505	0.680	282.9	129.8	412.7	12700	N/A	492 Amps
Merlin	336.4	18/1	0.1367	0.1367	0.1367	0.683	315.8	49.50	365.2	8680	N/A	519 Amps
Linnet	336.4	26/7	0.1137	0.0884	0.2642	0.720	317.1	145.4	462.5	14100	N/A	529 Amps
Oriole	336.4	30/7	0.1059	0.1059	0.3117	0.741	318.2	208.9	527.1	17800	N/A	535 Amps
Chickadee	397.5	18/1	0.1486	0.1486	0.1486	0.743	373.1	58.5	431.6	9940	N/A	576 Amps
Brant	397.5	24/7	0.1287	0.0858	0.2574	0.772	375.0	137.0	512	14500	N/A	584 Amps
Ibis	397.5	26/7	0.1236	0.0961	0.2882	0.783	374.7	171.9	546.6	16300	N/A	587 Amps
Lark	397.5	30/7	0.1151	0.1151	0.3453	0.806	375.8	246.8	622.6	20300	N/A	594 Amps
Pelican	477.0	18/1	0.1628	0.1628	0.1628	0.814	447.8	70.2	518	11800	N/A	646 Amps
Flicker	477.0	24/7	0.1410	0.0940	0.2820	0.846	450.1	164.4	614.5	17200	N/A	655 Amps
Hawk	477.0	26/7	0.1354	0.1053	0.3159	0.858	449.6	206.4	656	19500	N/A	659 Amps
Hen	477.0	30/7	0.1261	0.1261	0.3783	0.883	451.1	296.2	747.3	23800	N/A	666 Amps
Osprey	556.5	18/1	0.1758	0.1758	0.1758	0.879	522.2	81.8	604.1	13700	N/A	711 Amps
Parakeet	556.5	24/7	0.1523	0.1015	0.3045	0.914	525.1	191.7	716.9	19800	N/A	721 Amps
Dove	556.5	26/7	0.1463	0.1138	0.3414	0.927	525.0	241.0	766	22500	N/A	726 Amps
Eagle	556.5	30/7	0.1362	0.1362	0.4086	0.953	526.3	345.6	871.8	27800	N/A	734 Amps
Peacock	605.0	24/7	0.1588	0.1059	0.3177	0.953	570.9	208.7	779.6	21600	N/A	760 Amps
Squab	605.0	26/7	0.1525	0.1186	0.3558	0.966	570.4	261.8	832.2	24300	N/A	765 Amps
Wood Duck	605.0	30/7	0.1420	0.1420	0.4260	0.994	572.0	375.6	947.7	28900	N/A	774 Amps
Teal	605.0	30/19	0.1420	0.0852	0.4260	0.994	572.0	367.4	939.4	30000	N/A	773 Amps
Kingbird	636.0	18/1	0.1880	0.1880	0.1880	0.940	597.2	93.6	690.8	15700	N/A	773 Amps
Swift	636.0	36/1	0.1329	0.1329	0.1329	0.930	596.9	46.8	643.7	13800	N/A	769 Amps
Rook	636.0	24/7	0.1628	0.1085	0.3255	0.977	600.0	219.1	819.1	22600	N/A	784 Amps
Grosbeak	636.0	26/7	0.1564	0.1216	0.3648	0.990	597.9	276.2	874.1	25200	N/A	789 Amps
Scoter	636.0	30/7	0.1456	0.1456	0.4368	1.019	601.4	394.9	996.3	30400	N/A	798 Amps
Egret	636.0	30/19	0.1456	0.0874	0.4370	1.019	601.4	386.6	988	31500	N/A	798 Amps
Flamingo	666.6	24/7	0.1667	0.1110	0.3330	1.000	629.1	229.7	858.8	23700	N/A	807 Amps
Gannet	666.6	26/7	0.1601	0.1245	0.3730	1.014	628.7	288.5	917.1	26400	N/A	812 Amps
Stilt	715.5	24/7	0.1727	0.1151	0.3453	1.036	675.2	246.5	921.8	25500	N/A	844 Amps
Starling	715.5	26/7	0.1659	0.1290	0.3870	1.051	675.0	309.7	984.7	28400	N/A	849 Amps
Redwing	715.5	30/19	0.1544	0.0926	0.4630	1.081	676.3	434.0	1110	34600	N/A	859 Amps
Coot	795.0	36/1	0.1486	0.1486	0.1486	1.040	746.2	58.5	804.7	16800	N/A	884 Amps
Cuckoo	795.0	24/7	0.1820	0.1213	0.3640	1.092	749.9	273.8	1024	27900	N/A	901 Amps
Drake	795.0	26/7	0.1749	0.1360	0.4080	1.108	750.3	344.2	1094	31500	N/A	907 Amps
Tern	795.0	45/7	0.1329	0.0886	0.2548	1.063	749.8	146.1	895.9	22100	N/A	887 Amps
Condor	795.0	54/7	0.1213	0.1213	0.3639	1.092	749.5	273.6	1023	28200	N/A	889 Amps
Mallard	795.0	30/19	0.1628	0.0977	0.4885	1.140	751.9	483.1	1235	38400	N/A	918 Amps
Ruddy	900.0	45/7	0.1414	0.0943	0.2829	1.131	848.7	165.5	1014	24400	N/A	958 Amps
Canary	900.0	54/7	0.1291	0.1291	0.3873	1.162	849.0	309.9	1149	31900	N/A	961 Amps
Rail	954.0	45/7	0.1456	0.0971	0.2913	1.165	899.9	175.5	1075	25900	N/A	993 Amps
Cardinal	954.0	54/7	0.1329	0.1329	0.3987	1.196	900.7	328.4	1228	33800	N/A	996 Amps
Ortolan	1033.5	45/7	0.1515	0.1010	0.3030	1.212	974.3	189.8	1164	27700	N/A	1043 Amps
Curlew	1033.5	54/7	0.1383	0.1383	0.4149	1.245	974.3	355.6	1330	36600	N/A	1047 Amps
Bluejay	1113.0	45/7	0.1573	0.1049	0.3147	1.259	1050.0	204.8	1255	29800	N/A	1092 Amps
Finch	1113.0	54/19	0.1436	0.0862	0.4310	1.293	1056.0	276.1	1432	39100	N/A	1093 Amps
Bunting	1192.5	45/7	0.1628	0.1085	0.3255	1.302	1125.0	219.1	1344	32000	N/A	1139 Amps
Grackle	1192.5	54/19	0.1486	0.0892	0.4460	1.338	1130.0	402.7	1533	41900	N/A	1140 Amps
Bittern	1272.0	45/7	0.1681	0.1121	0.3363	1.345	1200.0	233.9	1433	34100	N/A	1184 Amps
Pheasant	1272.0	54/19	0.1535	0.0921	0.4605	1.382	1206.0	429.3	1635	43500	N/A	1187 Amps
Dipper	1351.5	45/7	0.1733	0.1155	0.3465	1.386	1275.0	248.3	1525	36200	N/A	1229 Amps
Martin	1351.5	54/19	0.1582	0.9049	0.4745	1.424	1281.0	455.8	1737	46300	N/A	1232 Amps
Bobolink	1431.0	45/7	0.1783	0.1189	0.3567	1.427	1350.0	263.1	1613	38300	N/A	1272 Amps
Plover	1431.0	54/19	0.1628	0.0977	0.4885	1.465	1357.0	483.1	1840	49100	N/A	1275 Amps
Nuthatch	1510.5	45/7	0.1832	0.1221	0.3663	1.465	1425.0	277.4	1702	40100	N/A	1313 Amps
Parrot	1510.5	54/19	0.1672	0.1003	0.5015	1.505	1431.0	509.2	1940	51700	N/A	1318 Amps
Lapwing	1590.0	45/7	0.1880	0.1253	0.3759	1.504	1498.0	292.2	1793	42200	N/A	1354 Amps
Falcon	1590.0	54/19	0.1716	0.1030	0.5150	1.545	1507.0	537.0	2044	54500	N/A	1359 Amps
Chukar	1780.0	84/19	0.1456	0.0874	0.4370	1.602	1688.0	386.6	2975	51000	N/A	1453 Amps
Mockingbird	2034.5	72/7	0.1598	0.1121	0.3662	1.681	1924.0	234.0	2158	46800	N/A	1550 Amps
Bluebird	2156.0	84/19	0.1602	0.0961	0.4805	1.762	2044.0	467.4	2511	60300	N/A	1623 Amps
Kiwi	2167.0	72/7	0.1735	0.1157	0.3471	1.735	2055.0	248.9	2303	49800	N/A	1607 Amps
Thrasher	2312.0	76/19	0.1744	0.0814	0.4070	1.802	2191.0	335.4	2527	56700	N/A	1673 Amps
Joree	2515.0	76/19	0.1819	0.0849	0.4245	1.880	2384.0	364.8	2749	61700	N/A	1751 Amps

ACSR Conductor BS215 Standard

Code name	Nominal aluminum area (mm2)	Stranding structure (Al. No.)	Stranding structure (Al. Dia.)mm	Stranding structure (St. No.)	Stranding structure (St. Dia)mm	Sectional area of aluminum(mm2)	Total sectional area(mm2)	Overall diameter (mm2)	Wight Total(kg/km )	Calculated breaking load (daN)	Calculate D.C resistance at 20 ℃	Current Rating(A)
Mole	10	6	1.5	1	1.5	10.62	12.39	4.5	43	414	2.706	67
Squirrel	20	6	2.11	1	2.11	20.94	24.43	6.33	85	788	1.368	109
Gopher	25	6	2.36	1	2.36	26.24	30.62	7.08	106	961	1.093	126
Weasel	30	6	2.59	1	2.59	31.61	36.88	7.77	128	1146	0.9077	134
Fox	35	6	2.79	1	2.79	36.66	42.77	8.37	149	1320	0.7822	147
Ferret	40	6	3	1	3	42.41	49.48	9	172	1520	0.6766	161
Rabbit	50	6	3.35	1	3.35	52.88	61.7	10.05	214	1835	0.5426	185
Mink	60	6	3.66	1	3.66	63.18	73.71	10.98	255	2180	0.4545	174
Skunk	60	12	2.59	7	2.59	63.27	100.3	12.95	465	5300	0.4567	246
Beaver	70	6	3.99	1	3.99	74.82	87.29	11.97	302	2570	0.3825	193
Horse	70	12	2.79	7	2.79	73.37	116.2	13.95	538	6120	0.3936	268
Racoon	75	6	4.1	1	4.1	79.2	92.4	12.3	320	2720	0.3622	231
Otter	80	6	4.22	1	4.22	83.88	97.86	13.98	339	2880	0.3419	240
Cat	90	6	4.5	1	4.5	95.4	111.3	15.9	386	3270	0.3007	248
Hare	100	6	4.72	1	4.72	105	122.5	17.5	425	3600	0.2733	273
Dog	100	6	4.72	7	1.57	105	118.5	14.15	394	3270	0.2733	278
Hyena	100	7	4.39	7	1.93	105.8	126.2	14.57	450	4090	0.2712
Leopard	125	8	5.28	7	1.75	131.3	148.1	15.81	492	4070	0.2184
Coyote	125	26	2.54	7	1.91	132.1	152.2	15.89	522	4640	0.2187	311
Congar	125	18	3.05	1	3.05	130.3	137.5	15.25	419	2980	0.2189	314
Tiger	125	30	2.36	7	2.36	131.1	161.7	16.52	602	5800	0.2202	323
Dingo	150	18	3.35	1	3.35	158.7	167.5	16.75	506	3570	0.1815	349
Wolf	150	30	2.59	7	2.59	158.1	194.9	18.13	726	6920	0.1828	355
Caracal	175	18	3.61	1	3.61	184.3	194.5	18.05	587	4110	0.1563	383
Lynx	175	30	2.79	7	2.79	183.4	326.2	19.53	842	7980	0.1576	386
Jaguar	200	18	3.86	1	3.86	210.6	222.3	19.3	671	4655	0.1367	415
Panther	200	30	3	7	3	212.1	261.5	21	974	9225	0.1363	421
Lion	225	30	3.18	7	3.18	238.5	294.2	22.26	1095	10060	0.1212	448
Bear	250	30	3.35	7	3.35	264	325.6	23.45	1213	11110	0.1093	481
Goat	300	30	3.71	7	3.71	324.3	400	25.97	1489	13570	0.0891	542
Sheep	350	30	3.99	7	3.99	374.1	461.4	27.93	1718	15590	0.07704	592
Antelope	350	54	2.97	7	2.97	373.1	421.5	26.73	1411	11820	0.07727	588
Bison	350	54	3	7	3	381.8	431.3	27	1444	12090	0.07573	595
Deer	400	30	4.27	7	4.27	429.3	529.5	28.89	1971	17850	0.0674	639
Zebra	400	54	3.18	7	3.18	428.9	484.5	28.62	1621	13190	0.0674	635
ELK	450	30	4.5	7	4.5	477	588.3	31.5	2190	19820	0.06056	679
Camel	450	54	3.35	7	3.35	475.2	536.8	30.15	1777	14570	0.06073	677
Moose	500	54	3.53	7	3.53	528.7	597.2	31.77	1999	16110	0.0547	763

ACSR Conductor Canadian Standard

Code name	Total Area			Stranding and diameter		Approximate overall diameter	Linear mass			Rated tensile strength	Maximum D.C. Resistance at 20 ℃ Ω/km	Cuttent Rating
	Aluminum	Steel	Total	Aluminum	Steel		Aluminum	Steel	Total.
	mm 2	mm 2	mm 2	mm	mm	mm	kg/km	kg/km	kg/km	daN		A
wren	8.34	1.39	9.73	6/1.33	1/1.33	3.99	22.9	10.8	33.7	308	3.43035	63
Warbler	10.59	1.34	11.93	6/1.5	1/1.50	4.5	29	14	43	420	2.7139	67
Turkey	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	524	2.1586	78
Swan	21.16	3.55	24.71	6/2.12	1/2.12	6.36	58	27	85	832	1.3557	105
Swante	21.16	5.35	26.5	7/1.96	1/2.61	6.53	58	42	100	1053	1.3557	104
Swallow	26.69	4.45	31.14	6/2.38	1/2.38	7.14	73.3	34.6	107.9	1021	1.07124	126
Sparrow	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	1270	0.8535	139
Sparate	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	1611	0.8535	138
Robin	42.39	7.1	49.49	6/3.00	1/3.00	9	116	55	171	1585	0.6767	160
Raven	53.48	8.9	62.38	6/3.37	1/3.37	10.11	147	69	216	1932	0.5364	183
Quail	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	2362	0.4255	210
Pigeon	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	2941	0.3373	241
Penguin	107.23	17.87	125.1	6/4.77	1/4.77	14.31	294	139	433	3706	0.2675	276
Waxwing	135.16	7.48	142.64	18/3.09	1/3.09	15.45	373	58	431	3027	0.2133	319
Partridge	135.16	22	157.16	26/2.57	7/2.00	16.28	374	172	546	5029	0.2143	323
Ostrich	152	24.71	176.71	26/2.73	7/2.12	17.28	421	193	614	5652	0.1906	346
Merlin	170.45	9.48	179.93	18/3.47	1/3.47	17.35	470	74	544	3823	0.1691	364
Linnet	170.45	27.81	198.26	26/2.89	7/2.25	18.31	472	217	689	6271	0.1699	371
Oriole	170.45	39.81	210.26	30/2.69	7/2.69	18.83	473	311	784	7745	0.1704	372
Chickadee	201.42	11. 16	212.58	18/3.77	1/3.77	18.85	555	87	642	4399	0.1431	403
Brant	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	6469	0.1438	405
Ibis	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	7211	0.1438	403
Lark	201.42	46.97	248.39	30/2.92	7/2.92	20.44	560	367	927	8869	0.1442	410
Pelican	241.68	13.42	255.1	18/4.12	1/4.14	20.7	666	105	771	5216	0.1193	449
Flicker	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	7666	0.1199	454
Hawk	241.68	39.42	281.1	26/3.44	7/2.67	21.79	670	308	978	8665	0.1199	455
Hen	241.68	56.39	298.07	30/3.20	7/3.20	22.4	671	441	1112	10534	0.1201	457
Osprey	282	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	6088	0.1022	492
Parakeet	282	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1067	8822	0.1027	492
Dove	282	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1140	10103	0.1027	499
Eagle	282	65.81	347.81	30/3.46	7/3.46	24.21	783	515	1298	13392	0.103	500
Peacock	306.58	39.74	346.32	24/4.03	7/2.69	24.2	849	311	1160	9588	0.0945	522
Squab	306.58	49.94	356.52	26/3.87	7/3.01	24.51	850	390	1240	10841	0.0945	523
Wood duck	306.58	71.55	378.13	30/3.16	7/3.61	25.25	851	560	1411	12884	0.0947	523
Teal	306.58	69.87	376.45	30/3.61	19/2.16	25.24	851	548	1399	13359	0.0947	527
Kingbird	322.26	17.9	340.16	18/4.78	1/4.78	23.88	889	139	1028	6956	0.08945	530
Rook	322.26	41.81	364.07	24/4.14	7/2.76	24.84	893	326	1219	10083	0.08989	537
Grosbeak	322.26	52.45	374.71	26/3.97	7/3.09	25.15	893	409	1302	11180	0.08989	538
Scoter	322.26	75.22	394.48	30/3.70	7/3.70	25.88	895	589	1484	13544	0.09011	541
Egret	322.26	73.55	395.81	30/3.70	19/2.22	25.9	894	576	1470	14055	0.09011	542
Swift	322.26	8.96	331.22	36/3.38	1/3.38	23.62	888	70	958	6052	0.08945	542
Flamingo	337.74	43.81	381.55	24/4.23	7/2.82	25.4	936	342	1278	10566	0.08577	552
Gannet	337.74	55.03	392.77	26/4.07	7/3.16	25.76	936	429	1365	11733	0.08577	618
Stilt	362.58	46.97	409.55	24/4.39	7/2.92	26.31	1005	367	1372	11335	0.07989	577
Starling	362.58	59.03	421.61	26/4.21	7/3.28	26.68	1005	461	1466	12591	0.07989	578
Redwing	362.58	82.58	445.16	30/3.92	19/2.35	27.43	1006	647	1653	15394	0.08009	581
Tern	402.84	27.87	430.71	45/3.38	7/2.25	27.03	1116	217	1333	9737	0.07191	610
Condor	402.84	52.19	455.03	54/3.08	7/3.08	27.72	1116	408	1524	12445	0.07911	614
Cuckoo	402.84	52.19	455.03	24/4.62	7/3.08	27.74	1116	408	1522	12394	0.07191	614
Drake	402.84	65.51	468.45	26/4.44	7/3.45	28.11	1116	518	1628	13992	0.07191	614
Coot	402.84	11.16	414	36/3.77	1/3.77	26.41	1110	88	1198	7485	0.07156	614
Mallard	402.84	91.87	484.71	30/4.14	19/2.48	28.96	1119	719	1838	17118	0.07208	618
Ruddy	456.06	31.54	487.6	45/3.59	7/2.40	28.73	1263	247	1510	10931	0.06351	656
Canary	456.06	59.1	515.16	54/3.28	7/3.28	29.52	1263	461	1724	14095	0.06351	660
Rail	483.42	33.42	516.84	45/3.70	7/2.47	29.61	1339	262	1601	11585	0.05992	679
Catbird	483.42	13.42	496. 84	36/4.14	1/4.14	28.95	1333	105	1438	8766	0.05962	679
Cardinal	483.42	62.65	546. 07	54/3.38	7/3.38	30.42	1339	490	1829	14936	0.05992	681
Ortolan	523.68	36.19	559. 87	45/3.85	7/2.57	30.81	1451	283	1734	12310	0.05331	712
Tanager	523.68	14.51	538.19	36/4.30	1/4.30	30.12	1443	113	1556	9493	0.05504	710
Curlew	523.68	67.87	591.55	54/3.52	7/3.52	31.68	1451	530	1981	16180	0.05531	715
Bluejay	563.93	39.03	602.96	45/4.00	7/2.66	31.98	1563	385	1868	13263	0.05136	743
Finch.	563.93	71.55	635.48	54/3.65	19/2.19	32.85	1570	580	2130	17441	0.05161	746
Bunting	604.26	41.55	645.81	48/4.14	7/2.76	33.12	1674	327	2001	14179	0.04793	772
Grackle	604.26	76.58	680.84	54/3.77	19/2.27	33.97	1682	600	2282	18678	0.04817	773
Bittern	644.51	44.52	689.03	45/4.27	7/2.85	34.17	1785	349	2134	15148	0.04494	802
Pheasant	644.51	81.63	726.19	54/3.90	19/2.34	35.1	1795	638	2433	19400	0.04516	807
Skylark	644.51	17.87	662.38	36/4.78	1/4.78	33.42	1777	140	1917	11585	0.04472	810
Dipper	684.84	47.1	731.94	45/4.40	7/2.92	35.16	1898	368	2266	16070	0.0423	831
Martin	684.84	88.71	771.55	54/4.02	19/2.41	36.17	1906	679	2585	20605	0.0425	835
Bobolink	725.1	50.32	775.42	45/4.53	7/3.02	36.24	2009	393	2402	17071	0.03994	859
Plover	725.1	91.87	816.97	54/4.14	19/2.48	37.24	2019	719	2738	21824	0.04013	862
Nuthatch	765.35	52.9	818.25	45/4.65	7/3.10	37.2	2120	414	2534	17789	0.03784	886
Parrot	765.35	96.84	862.19	54/4.25	19/2.55	38.25	2131	759	2890	23020	0.03802	890
Lapwing	805.68	55.48	861.16	45/4.77	7/3.18	38.16	2232	435	2667	18702	0.03595	911
Falcon	805.68	102.1	907.81	54/4.36	19/2.62	39.26	2243	799	3042	24255	0.03613	917
Chukar	902.7	73.51	902.72	84/3.70	19/2.22	40.7	2511	575	3086	22685	0.03245	975
BlueBird	1092	88.8	1092.28	84/4.07	19/2.44	44.76	3036	697	3733	26830	0.02681	1180
Kiwi	1100	47.5	1099.2	72/4.41	7/2.94	44.07	3057	370	3427	22160	0.02684	1180
Thrasher	1170.8	65.15	1170.8	76/4.43	19/2.09	45.9	3256	511	3767	25300	0.02478	1200
Grouse	40.52	14.13	54.65	8/2.54	1/4.24	9.32	112	110	222	2360	0.7115	155
Petrel	51.61	30.06	81.67	12/2.34	7/2.34	11.71	143	235	378	4715	0.5613	187
Minorca	56.13	32.77	88.9	12/2.44	7/2.44	12.22	156	256	412	5125	0.5161	197
Leghorn	68.19	39.81	108	12/2.69	7/2.69	13.46	189	311	500	6170	0.4248	221
Guinea	80.58	46.97	127.55	12/2.92	7/2.92	14.63	223	367	590	7255	0.3595	244
Dotterel	89.48	52.19	141.67	12/3.08	7/3.08	15.42	248	409	657	7850	0.3237	260
Dorking	96.71	56.39	153.1	12/3.20	7/3.20	16.03	268	441	709	8480	0.2995	272
Brahma	102.97	91.87	194.84	16/2.86	19/2.48	18.14	285	722	1007	12880	0.2813	288
Auk	102.84	92.32	195.2	8/4.05	7/2.25	14.83	282.7	217.3	500	8740	0.2789	276
Cochin	107.1	62.45	169.55	12/3.37	7/3.37	16.84	297	488	765	9390	0.2705	287

ACSR Conductor DIN-48204 Standard

Area				Standing and wire diameter		Overall diameter		Nominal breaking load	Maximum resistance at 20°C	Current Rating
Nominal.	Actual						Total.
Al/Steel--	Al	Steel	Total	Aluminum	Steel
	mm 2	mm 2	mm 2	mm	mm	mm	kg/km	daN	Ω/km	A
16/2.5	15	2.5	17.8	6/1.80	1/1.80	5.4	62	595	1.878	105
25/4.0	23.8	4	27.8	6/2.25	1/2.5	6.8	97	920	1.2002	140
35/6.0	34.3	5.7	40	6/2.70	1/2.70	8.1	140	1265	0.8352	170
44/32.0	44	31.7	75.7	14/2.00	7/2.40	11.2	372	4500	0.6573	220
50/8.0	48.3	8	56.3	6/3.20	1/3.20	9.6	196	1710	0.5946	210
50/30	51.2	29.8	81	12/2.33	7/2.33	11.7	378	4380	0.5643	223
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	284	2680	0.413	290
95/15	94.4	15.3	109.7	26/2.15	7/1.67	13.6	383	3575	0.3058	350
95/55	96.5	56.3	152.8	12/3.20	7/3.20	16	712	7935	0.2992	352
105/75	105.7	75.5	181.5	14/3.10	9/2.25	17.5	891	10845	0.2735	385
120/20	121.06	19.8	141.4	26/2.44	7/1.90	15.5	494	4565	0.2374	410
120/70	122	71.3	193.3	12/3.60	7/3.60	18	90	10000	0.2364	410
125/30	127.9	29.8	157.7	30/2.33	7/2.33	16.3	591	5760	0.2259	425
150/25	148.9	24.2	173.1	26/2.70	7/2.10	17.1	605	5525	0.1939	470
170/40	171.8	40.1	211.9	30/2.70	7/2.70	18.9	794	7675	0.1682	520
185/30	183.8	29.8	213.6	26/3.00	7/2.33	19	746	6620	0.1571	535
210/35	209.1	34.1	243.2	26/3.20	7/2.49	20.3	850	7490	0.138	590
210/50	212.1	49.5	261.6	30/3.00	7/3.00	21	981	9390	0.1362	610
230/30	230.9	29.8	260.7	24/3.50	7/2.33	21	877	7310	0.1249	630
240/40	243	39.5	282.5	26/3.45	7/2.68	21.9	987	8640	0.1188	645
265/35	263.7	34.1	297.8	24/3.74	7/2.49	22.4	1002	8305	0.1094	680
300/50	304.3	49.5	353.7	26/3.86	7/3.00	24.5	1236	10700	0.09487	740
305/40	304.6	39.5	344.1	54/2.68	7/2.68	24.1	1160	9940	0.0949	740
340/30	339.3	29.8	369.1	48/3.00	7/2.33	25	1180	9290	0.08509	790
380/50	382	49.5	431.5	54/3.00	7/3.00	27	1453	12310	0.08509	840
385/35	386	34.1	420.1	48/3.20	7/2.49	26.7	1344	10480	0.07573	850
435/55	434.03	59.3	490.6	54/3.20	7/3.20	28.8	1653	13645	0.07478	900
450/40	448.7	39.5	488.2	48/3.45	7/2.68	28.7	1561	12075	0.06656	920
490/65	490.3	63.6	553.9	54/3.40	7/3.40	30.6	1866	15310	0.06434	960
495/35	494.1	34.1	528.2	45/3.74	7/2.49	29.9	1646	12180	0.05846	968
510/45	510.2	45.3	555.5	48/3.68	7/2.87	30.7	1778	13665	0.05655	980
550/70	550	71.3	621.3	54/3.60	7/3.60	32.4	2092	17060	0.05259	1020
560/50	561.7	49.5	611.2	48/3.86	7/3.00	32.2	1954	14895	0.0514	1040
570/40	565.5	39.5	610.3	45/4.00	7/2.68	32.2	1888	13900	0.05108	1040
650/45	698.5	45.3	653.49	45/4.30	7/2.87	34.4	2163	15552	0.0442	1280
680/85	678.8	86	764.8	54/4.00	19/2.40	36	2570	21040	0.0426	1150
1045/45	1045.58	45.3	1090.9	72/4.30	7/2.87	43	3249	21787	0.0277	1570

ACSR Conductor IEC61089 A1S3A Standard

Code number	Area			Number of wires		Wire dia.		Diameter		Linear Mass	Rated Strength	D.C. Resistance
	Alum.	Steel	Total			Alum.	Steel	Core	Con.
	mm 2	mm 2	mm 2	Al	St	mm	mm	mm	mm	kg/km	kN	Ω/km
16	16	2.67	18.7	6	1	1.84	1.84	1.84	5.53	64.6	6.83	1.7934
25	25	4.17	29.2	6	1	2.3	2.3	2.3	6.91	100.9	10.25	1.1478
40	40	6.67	46.7	6	1	2.91	2.91	2.91	8.74	161.5	16.2	0.7174
63	63	10.5	73.5	6	1	3.66	3.66	3.66	11	254.4	24.15	0.4555
100	100	16.7	117	6	1	4.61	4.61	4.61	13.8	403.8	38.33	0.2869
125	125	6.94	132	18	1	2.97	2.97	2.97	14.9	397.9	31.04	0.2304
125	125	20.4	145	26	7	2.47	1.92	5.77	15.7	503.9	51.39	0.231
160	160	8.89	169	18	1	3.36	3.36	3.36	16.8	509.3	38.67	0.18
160	160	26.1	186	26	7	2.8	2.8	6.53	17.7	644.9	64.99	0.1805
200	200	11.1	211	18	1	3.76	3.76	3.76	18.8	636.7	46.89	0.144
200	200	32.6	233	26	7	3.13	2.43	7.3	19.8	806.2	78.93	0.1444
250	250	24.6	275	22	7	3.8	2.11	6.34	21.6	880.6	75.6	0.1154
250	250	40.7	291	26	7	3.5	2.72	8.16	22.2	1007.7	98.66	0.1155
315	315	21.8	337	45	7	2.99	1.99	5.97	23.9	1039.3	85.13	0.0917
315	315	51.3	366	26	7	3.93	3.05	9.16	24.9	1269.7	121.2	0.0917
400	400	27.7	428	45	7	3.36	2.24	6.73	26.9	1320.1	106.1	0.0722
400	400	51.9	452	54	7	3.07	3.07	9.21	27.6	1510.3	137.56	0.0723
450	450	31.1	481	45	7	3.57	2.38	7.14	28.5	1485.2	115.87	0.0642
450	450	58.3	508	54	7	3.26	3.26	9.77	29.3	1699.1	154.75	0.0643
500	500	34.6	535	45	7	3.76	2.51	7.52	30.1	1650.2	128.74	0.0578
500	500	64.8	565	54	7	3.43	3.43	10.3	30.9	1887.9	171.94	0.0578
560	560	38.7	599	45	7	3.98	2.65	7.96	31.8	1848.2	144.19	0.0516
560	560	70.9	631	54	19	3.63	2.18	10.9	32.7	2103.4	192.45	0.0516
630	630	43.6	674	45	7	4.22	2.81	8.44	33.8	2079.2	162.21	0.0459
630	630	79.8	710	54	19	3.85	2.31	11.6	34.7	2366.3	213.32	0.0459
710	710	49.1	759	45	7	4.48	2.99	8.96	35.9	2343.2	182.81	0.0407
710	710	89.9	800	54	19	4.09	2.45	12.3	36.8	2666.8	240.41	0.0407
800	800	34.6	835	72	7	3.76	2.51	7.52	37.6	2480.2	176.74	0.0361
800	800	66.7	867	84	7	3.48	3.48	10.4	38.3	2732.7	224	0.0362
800	800	101	901	54	19	4.34	2.61	13	39.1	3004.9	270.88	0.0362
900	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2790.2	198.83	0.0321
900	900	75	975	84	7	3.69	3.69	11.1	40.6	3074.2	244.5	0.0322
1000	1000	43.2	1043	72	7	4.21	2.8	8.41	42.1	3100.3	220.93	0.0289
1120	1120	47.3	1167	72	19	4.45	1.78	8.9	44.5	3464.9	247.77	0.0258
1120	1120	91.2	1211	84	19	4.12	2.47	12.4	45.3	3811.5	307.79	0.0258
1250	1250	52.8	1303	72	19	4.7	1.88	9.4	47	3867.1	276.53	0.0231
1250	1250	102	1352	84	19	4.35	2.61	13.1	47.9	4253.9	343.52	0.0232

Few More thing you should know

What are the advantages of ACSR Conductor?

Compared to other wire materials, ACSR Conductor offer superior conductivity, excellent corrosion resistance, high mechanical strength, and good reliability. Moreover, ACSR Cable are relatively affordable, making them a cost-effective choice for various applications.

What is the lifespan of ACSR products?

The lifespan of ACSR products depends on their operating conditions and environments. Generally, under normal conditions, ACSR products can last for more than 20 years.

Where can you get the high-quality conductor acsr with low price?

In the market of aluminium conductor steel reinforced, there are many acsr manufacturers. For example, the acsr conductor manufacturer in india, acsr conductor manufacturer from China. In the acsr conductor price list, China has the superiority. China has the cheapest aluminum in the world,, and aluminum is the main material of aluminum conductor steel reinforced. Galaxy Electric Cable Group is located in Henan province. Henan owns the cheap aluminum, so we can provide the low acsr conductor price.
Expect price, I think the quality is also an important index when you buy aluminium conductor steel reinforced. Huadong Cable insist the quality first and service first. Before acsr aluminum conductor steel reinforced leave the factory, we will test strictly from various aspects. We can do what we promise, and we can accept your test or any third party test. Don’t hesitate, send the inquiry, you will get the best quotation with 12 hours.

How to choose ACSR Conductor?

As we all know, Cable ACSR has different standards and types, so the demands of customers are different. Every ACSR wire has a code name or number. When you purchase the conductor ACSR, you just need speak the the code, the seller will know what you want. If you don’t know the exact code name, it doesn’t matter. As long as you know ACSR conductor specifications, as professional aac manufacturers, Galaxy Electric Cable Group can customize for you.

Advantage of LM Cables

With over 30,000 products sold annually, LM Cables provides its customers with knowledgeable market and product application experts, standard same-day shipments, 99.99% order accuracy and on-time delivery, and 24/7/365 service.

Professional Supplier

Products include overhead bare conductors, overhead insulated cables, PVC/XLPE armored/non-armored power cables below 36kv, concentric service cables, control cables, construction wires and cables, solar/photovoltaic wires and cables, etc.

Quality Control

With strict quality control system, excellent R&D strength, and advanced equipment, LM Cables has the ability to provide cable and wire with good quality to meet the customers' satisfaction.

Multi Standard

Multi standard available to cable making. we supply the cables following standard of ASTM,BS,NF C,AS/NZS,DIN,IEC and China National Standard to meet the requirement of different markets.
