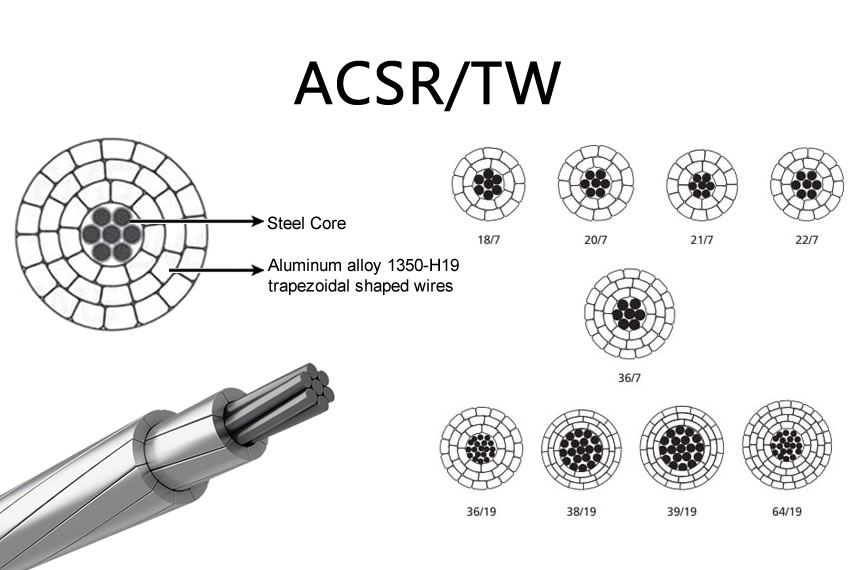

ACSR/TW stands for “Aluminum Conductor Steel Reinforced/Trapezoidal Wire”. It is a type of overhead power transmission cable that is commonly used in electrical power systems.
Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Reinforced (ACSR/TW) is designed for use as a bare overhead conductor. There are two designs of ACSR/TW. One design gives an equal area of aluminum when compared to the standard ACSR conductor sizes. The other design gives an overall outside diameter equal to standard ACSR conductor sizes. Use of this conductor in the equal area design allows equal ampacity in a smaller diameter conductor when compared with standard ACSR conductor. Use of this conductor in the equal diameter design allows more ampacity in an equal diameter conductor when compared with standard ACSR conductor.
Aluminum Conductor Steel Reinforced/Trapezoidal Wire,ACSR/TW Conductor,ACSR/TW Cable,ACSR/TW Wire
LM Cables can manufacture & supply ACSR/TW Cable on Non returnable wooden/steel reels or Returnable steel reels.
LM Cables can produce ACSR/TW according to various domestic and international standards and customer requirements, including ASTM and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.
Get all the answers to the most frequently asked questions (FAQs) regarding ACSR/TW Cable sizes,ACSR/TW Cable full form,ACSR/TW Conductor size chart,ACSR/TW Conductor chart,ACSR/TW Conductor sizes,ACSR/TW Conductor size chart,ACSR/TW Conductor full form,ACSR/TW Conductor ampacity,ACSR/TW Conductor diameter,ACSR/TW Conductor types,ACSR/TW Conductor data sheet and much, much more.
| Code | Conductor Size | Conductor Area ALUM (sq.in.) | Conductor Area TOTAL (sq.in.) | Type Code | Stranding No. Layers of Aluminum | Stranding Aluminum | Stranding Steel | Outside Diameter Complete Conductor (in.) | Outside Diameter Steel Core (in.) | Total Weight (lb/MFT) | Aluminum Weight (lb/MFT) | Steel Weight (lb/MFT) | Rated Strength (lbs.) | Resistance DC@20 ºC (OMS/MFT) | Resistance AC@75 ºC (OMS/MFT) | Allowable Ampacities+ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Merlin/TW | 336.4 | 0.2642 | 0.2788 | 6 | 2 | 14 | 1x0.1367 | 0.630 | 0.1367 | 365.0 | 315.5 | 49.5 | 8560 | 0.0510 | 0.0625 | 508 |
| Flicker/TW | 477.0 | 0.3747 | 0.4233 | 13 | 2 | 18 | 7x0.0940 | 0.776 | 0.2820 | 612.8 | 448.4 | 164.4 | 17200 | 0.0357 | 0.0437 | 641 |
| Hawk/TW | 477.0 | 0.3746 | 0.4356 | 16 | 2 | 18 | 7x0.1053 | 0.789 | 0.3159 | 655.0 | 448.7 | 206.3 | 19400 | 0.0356 | 0.0435 | 645 |
| Parakeet/TW | 556.5 | 0.4371 | 0.4937 | 13 | 2 | 18 | 7x0.1015 | 0.835 | 0.3045 | 714.9 | 523.2 | 191.7 | 20000 | 0.0306 | 0.0375 | 706 |
| Dove/TW | 556.5 | 0.4371 | 0.5083 | 16 | 2 | 20 | 7x0.1138 | 0.852 | 0.3414 | 764.5 | 523.5 | 241.0 | 22600 | 0.0305 | 0.0374 | 711 |
| Swift/TW | 636.0 | 0.4995 | 0.5133 | 3 | 3 | 27 | 1x0.1329 | 0.850 | 0.1329 | 646.0 | 599.2 | 46.8 | 13500 | 0.0272 | 0.0335 | 750 |
| Rook/TW | 636.0 | 0.4995 | 0.5643 | 13 | 2 | 19 | 7x0.1085 | 0.890 | 0.3255 | 816.0 | 597.9 | 219.1 | 22900 | 0.0268 | 0.0329 | 766 |
| Grosbeak/TW | 636.0 | 0.4995 | 0.5808 | 16 | 2 | 20 | 7x0.1216 | 0.908 | 0.3648 | 873.5 | 598.4 | 275.1 | 25400 | 0.0267 | 0.0327 | 772 |
| Tern/TW | 795.0 | 0.6244 | 0.6675 | 7 | 2 | 17 | 7x0.0886 | 0.960 | 0.2658 | 892.0 | 745.9 | 146.1 | 21000 | 0.0215 | 0.0266 | 869 |
| Puffin/TW | 795.0 | 0.6244 | 0.6919 | 10 | 2 | 18 | 7x0.1108 | 0.980 | 0.3324 | 975.3 | 746.9 | 228.4 | 25900 | 0.0215 | 0.0264 | 876 |
| Condor/TW | 795.0 | 0.6244 | 0.7053 | 13 | 2 | 20 | 7x0.1203 | 0.993 | 0.3639 | 1021.0 | 747.2 | 273.8 | 28200 | 0.0214 | 0.0264 | 880 |
| Drake/TW | 795.0 | 0.6244 | 0.7261 | 16 | 2 | 20 | 7x0.1360 | 1.010 | 0.4080 | 1092.0 | 747.8 | 344.2 | 31800 | 0.0213 | 0.0263 | 887 |
| Phoenix/TW | 954.0 | 0.7493 | 0.7876 | 5 | 3 | 30 | 7x0.0837 | 1.044 | 0.2511 | 1032.0 | 901.6 | 130.4 | 23700 | 0.0181 | 0.0224 | 967 |
| Rail/TW | 954.0 | 0.7493 | 0.8011 | 7 | 3 | 32 | 7x0.0971 | 1.061 | 0.2913 | 1075.0 | 900.0 | 175.0 | 25900 | 0.0180 | 0.0224 | 973 |
| Cardinal/TW | 954.0 | 0.7493 | 0.8464 | 13 | 2 | 20 | 7x0.1329 | 1.084 | 0.3987 | 1226.0 | 897.3 | 328.7 | 33500 | 0.0178 | 0.0221 | 985 |
| Snowbird/TW | 1033.5 | 0.8117 | 0.8534 | 5 | 3 | 30 | 7x0.0871 | 1.089 | 0.2613 | 1115.0 | 973.8 | 141.2 | 25700 | 0.0167 | 0.0208 | 1017 |
| Ortolan/TW | 1033.5 | 0.8117 | 0.8678 | 7 | 3 | 32 | 7x0.1010 | 1.102 | 0.3030 | 1165.0 | 975.2 | 189.8 | 28100 | 0.0167 | 0.0207 | 1021 |
| Curlew/TW | 1033.5 | 0.8117 | 0.9169 | 13 | 2 | 20 | 7x0.1383 | 1.129 | 0.4149 | 1327.0 | 971.1 | 355.9 | 36300 | 0.0165 | 0.0204 | 1036 |
| Avocet/TW | 1113.0 | 0.8742 | 0.9191 | 5 | 3 | 30 | 7x0.0904 | 1.129 | 0.2712 | 1201.0 | 1048.9 | 152.1 | 27500 | 0.0155 | 0.0193 | 1063 |
| Bluejay/TW | 1113.0 | 0.8742 | 0.9347 | 7 | 3 | 33 | 7x0.1049 | 1.143 | 0.3147 | 1257.0 | 1052.2 | 204.8 | 30300 | 0.0155 | 0.0193 | 1069 |
| Finch/TW | 1113.0 | 0.8742 | 0.9851 | 13 | 3 | 38 | 19x0.0862 | 1.185 | 0.4310 | 1429.0 | 1052.6 | 376.4 | 39100 | 0.0154 | 0.0191 | 1084 |
| Oxbird/TW | 1192.5 | 0.9366 | 0.9848 | 5 | 2 | 30 | 7x0.0936 | 1.167 | 0.2808 | 1286.0 | 1123.0 | 163.0 | 29500 | 0.0144 | 0.0180 | 1111 |
| Bunting/TW | 1192.5 | 0.9366 | 1.0013 | 7 | 3 | 34 | 7x0.1085 | 1.181 | 0.3255 | 1343.0 | 1124.0 | 219.0 | 32400 | 0.0144 | 0.0181 | 1114 |
| Grackel/TW | 1192.5 | 0.9366 | 1.0554 | 13 | 3 | 38 | 19x0.0892 | 1.225 | 0.4460 | 1530.0 | 1127.0 | 403.0 | 41900 | 0.0144 | 0.0179 | 1130 |
| Scissortail/TW | 1272.0 | 0.9991 | 1.0505 | 5 | 3 | 30 | 7x0.0967 | 1.203 | 0.2901 | 1372.0 | 1198.0 | 174.0 | 31400 | 0.0135 | 0.0170 | 1152 |
| Bittern/TW | 1272.0 | 0.9990 | 1.0681 | 7 | 3 | 35 | 7x0.1121 | 1.220 | 0.3363 | 1433.0 | 1198.0 | 234.0 | 34600 | 0.0135 | 0.0170 | 1159 |
| Pheasant/TW | 1272.0 | 0.9990 | 1.1256 | 13 | 3 | 39 | 19x0.9210 | 1.264 | 0.4605 | 1632.0 | 1202.0 | 430.0 | 44100 | 0.0135 | 0.0168 | 1176 |
| Dipper/TW | 1351.0 | 1.0615 | 1.1348 | 7 | 3 | 35 | 7x0.1155 | 1.256 | 0.3465 | 1522.0 | 1274.0 | 248.0 | 36700 | 0.0127 | 0.0160 | 1202 |
| Martin/TW | 1351.0 | 1.0615 | 1.1959 | 13 | 3 | 42 | 19x0.0949 | 1.300 | 0.4745 | 1734.0 | 1278.0 | 456.0 | 46800 | 0.0127 | 0.0159 | 1219 |
| Bobolink/TW | 1431.0 | 1.1236 | 1.2017 | 7 | 3 | 36 | 7x0.1189 | 1.291 | 0.3567 | 1613.0 | 1350.0 | 263.0 | 38900 | 0.0120 | 0.0152 | 1243 |
| Plover/TW | 1431.0 | 1.1239 | 1.2664 | 13 | 3 | 44 | 19x0.0977 | 1.337 | 0.4885 | 1836.0 | 1353.0 | 483.0 | 49600 | 0.0120 | 0.0150 | 1262 |
| Lapwing/TW | 1590.0 | 1.2488 | 1.3351 | 7 | 3 | 36 | 7x0.1253 | 1.358 | 0.3759 | 1791.0 | 1499.0 | 292.0 | 42200 | 0.0183 | 0.0138 | 1323 |
| Falcon/TW | 1590.0 | 1.2488 | 1.4071 | 13 | 3 | 42 | 19x0.1030 | 1.408 | 0.5150 | 2040.0 | 1503.0 | 537.0 | 55100 | 0.0108 | 0.0136 | 1345 |
| Chukar/TW | 1780.0 | 1.3986 | 1.5120 | 8 | 3 | 37 | 19x0.0874 | 1.445 | 0.4370 | 2063.0 | 1676.0 | 387.0 | 50700 | 0.0096 | 0.0124 | 1420 |
| Bluebird/TW | 2156.0 | 1.0934 | 1.8312 | 8 | 4 | 64 | 19x0.0961 | 1.608 | 0.4805 | 2515.0 | 2047.0 | 468.0 | 61100 | 0.0080 | 0.0105 | 1586 |
| Monongahela/TW | 405.1 | 0.3181 | 0.3362 | 6 | 2 | 14 | 1x0.1520 | 0.680 | 0.1520 | 441.0 | 379.8 | 61.2 | 10200 | 0.0423 | 0.0519 | 569 |
| Mohawk/TW | 571.7 | 0.4490 | 0.5074 | 13 | 2 | 18 | 7x0.1030 | 0.846 | 0.3090 | 734.7 | 537.3 | 197.4 | 20700 | 0.0298 | 0.0365 | 718 |
| Calumet/TW | 565.3 | 0.4439 | 0.5165 | 16 | 2 | 18 | 7x0.1147 | 0.858 | 0.3438 | 714.8 | 523.1 | 191.7 | 22900 | 0.0300 | 0.0368 | 718 |
| Mystic/TW | 666.6 | 0.5236 | 0.5914 | 13 | 2 | 20 | 7x0.1111 | 0.913 | 0.3330 | 856.3 | 626.6 | 229.7 | 24000 | 0.0255 | 0.0314 | 790 |
| Oswego/TW | 664.8 | 0.5221 | 0.6072 | 16 | 2 | 20 | 7x0.1244 | 0.927 | 0.3732 | 913.4 | 625.4 | 288.0 | 26600 | 0.0255 | 0.0313 | 794 |
| Nechako/TW | 768.9 | 0.6039 | 0.6220 | 3 | 3 | 27 | 1x0.1520 | 0.930 | 0.1520 | 781.9 | 720.7 | 61.2 | 16400 | 0.0255 | 0.0278 | 843 |
| Maumee/TW | 768.2 | 0.6034 | 0.6819 | 13 | 2 | 20 | 7x0.1195 | 0.977 | 0.3585 | 987.8 | 722.1 | 265.7 | 27700 | 0.0222 | 0.0273 | 862 |
| Wabash/TW | 762.8 | 0.5992 | 0.6966 | 16 | 2 | 20 | 7x0.1331 | 0.990 | 0.3993 | 1047.0 | 717.0 | 330.0 | 30500 | 0.0222 | 0.0274 | 863 |
| Kettle/TW | 957.2 | 0.7518 | 0.8038 | 7 | 3 | 32 | 7x0.0973 | 1.060 | 0.2919 | 1079.0 | 902.8 | 176.2 | 26000 | 0.0180 | 0.0223 | 974 |
| Fraser/TW | 946.7 | 0.7436 | 0.8168 | 10 | 3 | 35 | 7x0.1154 | 1.077 | 0.3462 | 1142.0 | 894.0 | 248.0 | 29600 | 0.0180 | 0.0223 | 978 |
| Columbia/TW | 966.2 | 0.7589 | 0.8573 | 13 | 2 | 21 | 7x0.1338 | 1.092 | 0.4014 | 1241.0 | 908.0 | 333.0 | 34000 | 0.0176 | 0.0218 | 993 |
| Suwannee/TW | 959.6 | 0.7537 | 0.8762 | 16 | 2 | 22 | 7x0.1493 | 1.108 | 0.4479 | 1318.0 | 903.0 | 415.0 | 37000 | 0.0177 | 0.0218 | 996 |
| Cheyenne/TW | 1168.1 | 0.9175 | 0.9646 | 5 | 3 | 30 | 7x0.0926 | 1.155 | 0.2778 | 1260.0 | 1100.4 | 159.6 | 28900 | 0.0148 | 0.0185 | 1095 |
| Genesee/TW | 1158.0 | 0.9095 | 0.9733 | 7 | 3 | 33 | 7x0.1078 | 1.165 | 0.3234 | 1308.0 | 1092.0 | 216.0 | 31600 | 0.0149 | 0.0186 | 1095 |
| Hudson/TW | 1158.4 | 0.9098 | 1.0281 | 13 | 2 | 26 | 7x0.1467 | 1.196 | 0.4401 | 1489.0 | 1089.0 | 400.0 | 39600 | 0.0147 | 0.0183 | 1111 |
| Catawba/TW | 1272.0 | 0.9991 | 1.0505 | 5 | 3 | 30 | 7x0.0967 | 1.203 | 0.2901 | 1372.0 | 1198.0 | 174.0 | 31400 | 0.0135 | 0.0170 | 1152 |
| Nelson/TW | 1257.1 | 0.9874 | 1.0557 | 7 | 3 | 35 | 7x0.1115 | 1.213 | 0.3345 | 1417.0 | 1185.7 | 231.3 | 34200 | 0.0137 | 0.0172 | 1150 |
| Yukon/TW | 1233.6 | 0.9689 | 1.0925 | 13 | 3 | 38 | 19x0.0910 | 1.245 | 0.4550 | 1586.0 | 1166.5 | 419.5 | 42900 | 0.0139 | 0.0173 | 1154 |
| Truckee/TW | 1372.5 | 1.0780 | 1.1334 | 5 | 3 | 30 | 7x0.1004 | 1.248 | 0.3012 | 1481.0 | 1293.4 | 187.6 | 33400 | 0.0126 | 0.0159 | 1206 |
| Mackenzie/TW | 1359.7 | 1.0679 | 1.1418 | 7 | 3 | 36 | 7x0.1559 | 1.259 | 0.3477 | 1530.0 | 1280.0 | 250.0 | 36900 | 0.0127 | 0.0159 | 1206 |
| Thames/TW | 1334.6 | 1.3480 | 1.1809 | 13 | 3 | 39 | 19x0.0944 | 1.290 | 0.4720 | 1713.0 | 1261.6 | 451.4 | 46300 | 0.0128 | 0.0160 | 1210 |
| St. Croix/TW | 1467.8 | 1.1529 | 1.2124 | 5 | 3 | 33 | 7x0.1041 | 1.292 | 0.3123 | 1585.0 | 1383.0 | 202.0 | 35800 | 0.0117 | 0.0149 | 1256 |
| Miramichi/TW | 1455.3 | 1.1430 | 1.2222 | 7 | 3 | 36 | 7x0.1200 | 1.302 | 0.3600 | 1640.0 | 1372.0 | 268.0 | 39200 | 0.0118 | 0.0150 | 1256 |
| Merrimack/TW | 1433.6 | 1.1250 | 1.2677 | 13 | 3 | 39 | 19x0.0978 | 1.340 | 0.4890 | 1840.0 | 1356.0 | 434.0 | 49700 | 0.0119 | 0.0150 | 1264 |
| Platte/TW | 1569.0 | 1.2323 | 1.2957 | 5 | 3 | 33 | 7x0.1074 | 1.334 | 0.3222 | 1693.0 | 1478.0 | 215.0 | 38200 | 0.0110 | 0.0140 | 1306 |
| Potomac/TW | 1557.4 | 1.2232 | 1.3079 | 7 | 3 | 36 | 7x0.1241 | 1.345 | 0.3723 | 1755.0 | 1468.0 | 287.0 | 41900 | 0.0111 | 0.0140 | 1307 |
| Rio Grande/TW | 1533.3 | 1.2043 | 1.3571 | 13 | 3 | 39 | 19x0.1012 | 1.382 | 0.5060 | 1968.0 | 1449.0 | 519.0 | 53200 | 0.0112 | 0.0141 | 1316 |
| Schuylkill/TW | 1657.4 | 1.3020 | 1.3920 | 7 | 3 | 36 | 7x0.128 | 1.386 | 0.3840 | 1868.0 | 1563.0 | 305.0 | 44000 | 0.0104 | 0.0133 | 1356 |
| Pecos/TW | 1622.0 | 1.2739 | 1.4429 | 13 | 3 | 39 | 19x0.1064 | 1.424 | 0.5320 | 2107.0 | 1533.0 | 574.0 | 57500 | 0.0106 | 0.0133 | 1363 |
| Pee Dee/TW | 1758.6 | 1.3810 | 1.4770 | 7 | 3 | 37 | 7x0.1319 | 1.427 | 0.3957 | 1982.0 | 1658.0 | 324.0 | 46700 | 0.0098 | 0.0126 | 1404 |
| James/TW | 1730.6 | 1.3590 | 1.5314 | 13 | 3 | 34 | 19x0.1075 | 1.470 | 0.5375 | 2221.0 | 1636.0 | 585.0 | 59400 | 0.0099 | 0.0126 | 1415 |
| Athabaska/TW | 1949.6 | 1.5312 | 1.6377 | 7 | 3 | 44 | 7x0.1392 | 1.504 | 0.4176 | 2199.0 | 1838.0 | 361.0 | 51900 | 0.0088 | 0.0115 | 1491 |
| Cumberland/TW | 1926.9 | 1.5134 | 1.7049 | 13 | 3 | 42 | 19x0.1133 | 1.545 | 0.5665 | 2471.0 | 1821.0 | 650.0 | 65300 | 0.0089 | 0.0114 | 1507 |
| Powder/TW | 2153.8 | 1.6912 | 1.8290 | 8 | 4 | 64 | 19x0.0961 | 1.602 | 0.4805 | 2498.0 | 2030.0 | 468.0 | 61100 | 0.0080 | 0.0105 | 1584 |
| Santee/TW | 2627.3 | 2.0630 | 2.2268 | 8 | 4 | 64 | 19x0.1062 | 1.762 | 0.5310 | 3048.0 | 2477.0 | 571.0 | 74500 | 0.0066 | 0.0089 | 1768 |
