LM Cables is a leading manufacturer of ACSR/AS (ACSR/AW) Conductor in the field of power transmission and distribution
With over 30 years production experience and 15 years export experience, factory price without any third party. Can be customized your ideal size,meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
LM Cables's ACSR/AS (ACSR/AW) Conductor have been exported to many countries and regions such as the Middle Est, Africa, Asia Oceania, South America, North America etc., and have won praise from domestic and foreign customers.
In this page, we'll introduce ACSR/AS (ACSR/AW) Conductor and their advantages, applications, standards and frequently asked questions.
ACSR/AS (ACSR/AW) stands for Aluminum Conductor Steel Reinforced/Aluminum-Clad Steel Reinforced. It is a type of ACSR conductor that has an outer layer made of aluminum-clad steel wires, which provides additional corrosion resistance and improved strength.
These types of conductors are commonly used in overhead power transmission and distribution lines due to their high strength, low weight, and good conductivity. ACSR/AS (ACSR/AW) are also known for their ability to withstand extreme weather conditions and can be used in both short and long transmission lines.
ACSR/AS conductor,ACSR/AS cable,ACSR/AS wire,ACSR/AW conductor,ACSR/AW cable,ACSR/AW wire

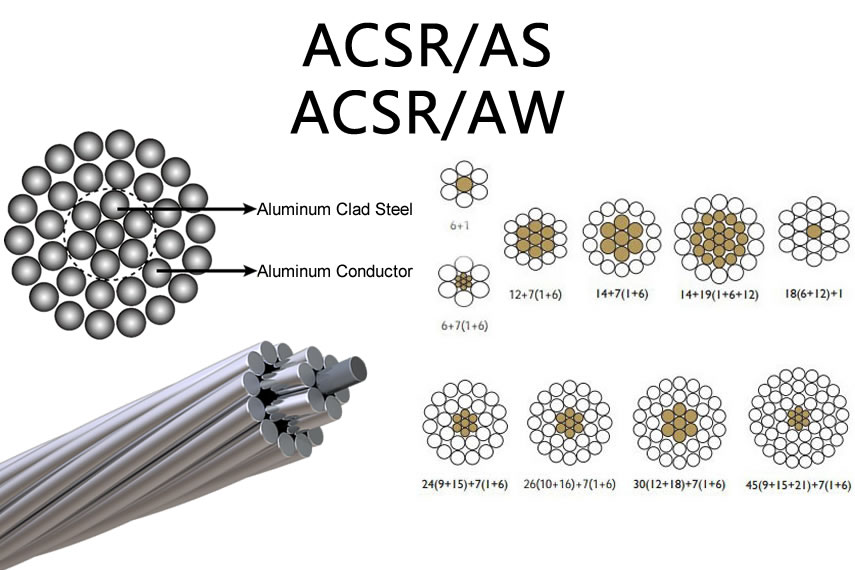

ACSR/AS or ACSR/AW – The full name: Aluminium Conductors, Aluminium Clad Steel Reinforced. They are concentrically stranded conductors with one or more layers of hard drawn 1350-H19 aluminium wires on Aluminium Clad steel wire core. The core can be single wire or stranded depending on the size.
LM Cables can produce ACSR/AS (ACSR/AW) Conductor according to various domestic and international standards and customer requirements, including GB, IEC, ASTM and other standards. We can also provide customized services according to customer’s special requirements to meet the needs of different customers.
Get all the answers to the most frequently asked questions (FAQs) regarding ACSR/AW ACSR/AS Cable sizes,ACSR/AW ACSR/AS Cable full form,ACSR/AW ACSR/AS Conductor size chart,ACSR/AW ACSR/AS Conductor chart,ACSR/AW ACSR/AS Conductor sizes,ACSR/AW ACSR/AS Conductor size chart,ACSR/AW ACSR/AS Conductor full form,ACSR/AW ACSR/AS Conductor ampacity,ACSR/AW ACSR/AS Conductor diameter,ACSR/AW ACSR/AS Conductor types,ACSR/AW ACSR/AS Conductor data sheet and much, much more.
| Code Name | Size AWG | Stranding (AL/STL) | Diameter Individual Wire Aluminum (Inches) | Diameter Individual Wire Steel (Inches) | Diameter Steel Core (Inches) | Diameter Complete Cable (O.D.) (Inches) | Weight (lb/1000 ft) Aluminum (Lbs.) | Weight (lb/1000 ft) AW (Lbs.) | Weight (lb/1000 ft) Total | Resistance DC 20 ºC Per MFT (ohm) | Allowable Ampacity | Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Petrel/AW | 101.8 | 12/7 | 0.0921 | 0.0921 | 0.2763 | 0.461 | 133.7 | 96.10 | 229.8 | 0.143 Ω | 281 Amps | N/A |
| Minorca/AW | 110.8 | 12/7 | 0.0961 | 0.0961 | 0.2883 | 0.481 | 145.6 | 104.60 | 250.3 | 0.131 Ω | 297 Amps | N/A |
| Leghorn/AW | 134.6 | 12/7 | 0.1059 | 0.1059 | 0.3177 | 0.530 | 176.9 | 127.10 | 303.9 | 0.108 Ω | 335 Amps | N/A |
| Guinea/AW | 159 | 12/7 | 0.1151 | 0.1151 | 0.3453 | 0.576 | 209.0 | 150.10 | 359.1 | 0.091 Ω | 372 Amps | N/A |
| Dotterel/AW | 176.9 | 12/7 | 0.1214 | 0.1214 | 0.3642 | 0.607 | 232.5 | 167.00 | 399.5 | 0.082 Ω | 398 Amps | N/A |
| Dorking/AW | 190.8 | 12/7 | 0.1261 | 0.1261 | 0.3783 | 0.631 | 250.8 | 180.10 | 430.9 | 0.076 Ω | 418 Amps | N/A |
| Brahma/AW | 203.2 | 16/19 | 0.1227 | 0.0977 | 0.4885 | 0.714 | 409.5 | 191.90 | 601.4 | 0.066 Ω | 464 Amps | N/A |
| Cochin/AW | 211.3 | 12/7 | 0.1327 | 0.1327 | 0.3981 | 0.664 | 277.6 | 199.40 | 477.0 | 0.069 Ω | 445 Amps | N/A |
| Swan/AW | 4 | 6/1 | 0.0834 | 0.0834 | 0.0834 | 0.250 | 39.0 | 15.60 | 54.6 | 0.390 Ω | N/A | 145 Amps |
| Swanate/AW | 4 | 7/1 | 0.0772 | 0.1029 | 0.1029 | 0.257 | 39.0 | 23.70 | 62.7 | 0.380 Ω | N/A | 148 Amps |
| Swallow/AW | 3 | 6/1 | 0.0937 | 0.0937 | 0.0094 | 0.028 | 49.3 | 19.70 | 68.9 | 0.309 Ω | N/A | N/A |
| Sparrow/AW | 2 | 6/1 | 0.1052 | 0.1052 | 0.1052 | 0.316 | 62.1 | 24.80 | 86.9 | 0.245 Ω | N/A | 194 Amps |
| Sparate/AW | 2 | 7/1 | 0.0974 | 0.1299 | 0.1295 | 0.324 | 62.1 | 37.70 | 99.7 | 0.239 Ω | N/A | 198 Amps |
| Robin/AW | 1 | 6/1 | 0.1181 | 0.1181 | 0.1181 | 0.354 | 78.3 | 31.30 | 109.5 | 0.195 Ω | N/A | 225 Amps |
| Raven/AW | 1/0 | 6/1 | 0.1327 | 0.1327 | 0.1327 | 0.398 | 98.8 | 39.50 | 138.3 | 0.154 Ω | N/A | 260 Amps |
| Quail/AW | 2/0 | 6/1 | 0.1489 | 0.1489 | 0.1489 | 0.447 | 124.4 | 49.80 | 174.1 | 0.122 Ω | N/A | 301 Amps |
| Pigeon/AW | 3/0 | 6/1 | 0.1672 | 0.1672 | 0.1672 | 0.502 | 156.8 | 62.70 | 220.0 | 0.097 Ω | N/A | 347 Amps |
| Penguin/AW | 4/0 | 6/1 | 0.1878 | 0.1878 | 0.1878 | 0.563 | 197.8 | 79.10 | 276.9 | 0.077 Ω | N/A | 402 Amps |
| Waxwing/AW | 266.8 | 18/1 | 0.1217 | 0.1217 | 0.1217 | 0.608 | 250.4 | 33.20 | 283.6 | 0.064 Ω | N/A | 451 Amps |
| Partridge/AW | 266.8 | 26/7 | 0.1013 | 0.0788 | 0.2364 | 0.642 | 251.9 | 98.00 | 349.8 | 0.062 Ω | N/A | 465 Amps |
| Phoebe/AW | 300 | 18/1 | 0.1291 | 0.1291 | 0.1291 | 0.646 | 282.0 | 37.40 | 319.4 | 0.057 Ω | N/A | N/A |
| Ostrich/AW | 300 | 26/7 | 0.1074 | 0.0835 | 0.2505 | 0.680 | 283.1 | 110.00 | 393.1 | 0.055 Ω | N/A | 500 Amps |
| Piper/AW | 300 | 30/7 | 0.1000 | 0.1000 | 0.3000 | 0.700 | 283.9 | 157.70 | 441.6 | 0.054 Ω | N/A | N/A |
| Merlin/AW | 336.4 | 18/1 | 0.1367 | 0.1367 | 0.1367 | 0.683 | 316.0 | 41.90 | 357.9 | 0.050 Ω | N/A | 522 Amps |
| Linnet/AW | 336.4 | 26/7 | 0.1137 | 0.0884 | 0.2642 | 0.720 | 317.3 | 123.20 | 440.5 | 0.049 Ω | N/A | 537 Amps |
| Oriole/AW | 336.4 | 30/7 | 0.1059 | 0.1059 | 0.3117 | 0.741 | 318.4 | 176.90 | 495.3 | 0.048 Ω | N/A | 547 Amps |
| Chickadee/AW | 397.5 | 18/1 | 0.1486 | 0.1486 | 0.1486 | 0.743 | 373.3 | 49.50 | 422.9 | 0.043 Ω | N/A | 580 Amps |
| Brant/AW | 397.5 | 24/7 | 0.1287 | 0.0858 | 0.2574 | 0.772 | 375.3 | 116.10 | 491.3 | 0.042 Ω | N/A | 592 Amps |
| Ibis/AW | 397.5 | 26/7 | 0.1236 | 0.0961 | 0.2882 | 0.783 | 374.9 | 145.60 | 520.5 | 0.041 Ω | N/A | 597 Amps |
| Lark/AW | 397.5 | 30/7 | 0.1151 | 0.1151 | 0.3453 | 0.806 | 376.2 | 209.00 | 585.2 | 0.041 Ω | N/A | 608 Amps |
| Pelican/AW | 477 | 18/1 | 0.1628 | 0.1628 | 0.1628 | 0.814 | 448.1 | 59.50 | 507.6 | 0.0360 Ω | N/A | 651 Amps |
| Flicker/AW | 477 | 24/7 | 0.1410 | 0.0940 | 0.2820 | 0.846 | 450.3 | 139.39 | 589.7 | 0.035 Ω | N/A | 663 Amps |
| Hawk/AW | 477 | 26/7 | 0.1354 | 0.1053 | 0.3159 | 0.858 | 449.9 | 174.90 | 624.8 | 0.035 Ω | N/A | 669 Amps |
| Hen/AW | 477 | 30/7 | 0.1261 | 0.1261 | 0.3783 | 0.883 | 451.5 | 250.76 | 702.2 | 0.034 Ω | N/A | 682 Amps |
| Heron/AW | 500 | 30/7 | 0.1291 | 0.1291 | 0.3870 | 0.904 | 473.4 | 262.96 | 736.4 | 0.032 Ω | N/A | N/A |
| Osprey/AW | 556.5 | 18/1 | 0.1758 | 0.1758 | 0.1758 | 0.879 | 522.5 | 69.34 | 591.9 | 0.031 Ω | N/A | 715 Amps |
| Parakeet/AW | 556.5 | 24/7 | 0.1523 | 0.1015 | 0.3045 | 0.914 | 525.4 | 162.45 | 687.9 | 0.030 Ω | N/A | 731 Amps |
| Dove/AW | 556.5 | 26/7 | 0.1463 | 0.1138 | 0.3414 | 0.927 | 525.3 | 204.29 | 729.6 | 0.030 Ω | N/A | 737 Amps |
| Eagle/AW | 556.5 | 30/7 | 0.1362 | 0.1362 | 0.4086 | 0.953 | 526.5 | 292.45 | 819.0 | 0.029 Ω | N/A | 751 Amps |
| Peacock/AW | 605 | 24/7 | 0.1588 | 0.1059 | 0.3177 | 0.953 | 571.5 | 176.87 | 748.4 | 0.0270 Ω | N/A | 770 Amps |
| Squab/AW | 605 | 26/7 | 0.1525 | 0.1186 | 0.3558 | 0.966 | 571.0 | 221.75 | 792.7 | 0.0270 Ω | N/A | 777 Amps |
| WoodDuck/AW | 605 | 30/7 | 0.1420 | 0.1420 | 0.4260 | 0.994 | 572.5 | 318.01 | 890.5 | 0.0270 Ω | N/A | N/A |
| Teal/AW | 605 | 30/19 | 0.1420 | 0.0852 | 0.4260 | 0.994 | 572.5 | 311.30 | 883.8 | 0.0270 Ω | N/A | 791 Amps |
| Duck/AW | 605 | 54/7 | 0.1059 | 0.1059 | 0.3180 | 0.953 | 571.8 | 176.87 | 748.6 | 0.0270 Ω | N/A | N/A |
| Kingbird/AW | 636 | 18/1 | 0.1880 | 0.1880 | 0.1880 | 0.940 | 597.6 | 79.46 | 677.1 | 0.0270 Ω | N/A | 778 Amps |
| Rook/AW | 636 | 24/7 | 0.1628 | 0.1085 | 0.3255 | 0.977 | 600.5 | 185.66 | 786.1 | 0.026 Ω | N/A | 794 Amps |
| Grosbeak/AW | 636 | 26/7 | 0.1564 | 0.1216 | 0.3648 | 0.990 | 600.5 | 233.23 | 833.8 | 0.026 Ω | N/A | 801 Amps |
| Scoter/AW | 636 | 30/7 | 0.1456 | 0.1456 | 0.4368 | 1.019 | 601.8 | 334.26 | 936.0 | 0.025 Ω | N/A | N/A |
| Egret/AW | 636 | 30/19 | 0.1456 | 0.0874 | 0.4370 | 1.019 | 601.8 | 327.62 | 929.4 | 0.025 Ω | N/A | N/A |
| Swift/AW | 636 | 24/7 | 0.1329 | 0.1329 | 0.1329 | 0.930 | 597.5 | 39.64 | 637.1 | 0.0270 Ω | N/A | N/A |
| Goose/AW | 636 | 26/7 | 0.1085 | 0.1087 | 0.3260 | 0.977 | 600.2 | 186.19 | 786.4 | 0.026 Ω | N/A | N/A |
| Flamingo/AW | 666.6 | 24/7 | 0.1667 | 0.1110 | 0.3330 | 1.333 | 629.3 | 194.65 | 823.9 | 0.025 Ω | N/A | 818 Amps |
| Gannet/AW | 666.6 | 26/7 | 0.1601 | 0.1245 | 0.3730 | 1.014 | 629.3 | 244.38 | 873.7 | 0.025 Ω | N/A | 825 Amps |
| Gull/AW | 666.6 | 54/7 | 0.1110 | 0.1110 | 0.3330 | 0.999 | 628.4 | 194.38 | 822.7 | 0.025 Ω | N/A | N/A |
| Stilt/AW | 715.5 | 24/7 | 0.1727 | 0.1151 | 0.3453 | 1.036 | 675.6 | 208.98 | 884.6 | 0.0230 Ω | N/A | N/A |
| Starling/AW | 715.5 | 26/7 | 0.1659 | 0.1290 | 0.3870 | 1.051 | 675.6 | 262.48 | 938.1 | 0.0230 Ω | N/A | 863 Amps |
| Redwing/AW | 715.5 | 30/19 | 0.1544 | 0.0926 | 0.4630 | 1.081 | 676.9 | 367.74 | 1044.6 | 0.0230 Ω | N/A | 878 Amps |
| Crow/AW | 715.5 | 54/7 | 0.1150 | 0.1150 | 0.3450 | 1.035 | 673.7 | 208.41 | 882.1 | 0.0230 Ω | N/A | N/A |
| Coot/AW | 795 | 36/1 | 0.1486 | 0.1486 | 0.1486 | 1.040 | 750.6 | 232.02 | 982.6 | 0.021 Ω | N/A | N/A |
| Cuckoo/AW | 795 | 24/7 | 0.1820 | 0.1213 | 0.3640 | 1.092 | 750.7 | 232 | 982.70 | 0.021 Ω | N/A | 913 Amps |
| Drake/AW | 795 | 26/7 | 0.1749 | 0.1360 | 0.4080 | 1.107 | 748 | 292 | 1040 | 0.022 Ω | N/A | 922 Amps |
| Tern/AW | 795 | 45/7 | 0.1329 | 0.0886 | 0.2660 | 1.063 | 750.5 | 123.74 | 874.2 | 0.021 Ω | N/A | 896 Amps |
| Condor/AW | 795 | 54/7 | 0.1213 | 0.1213 | 0.3639 | 1.092 | 750.1 | 232.02 | 982.1 | 0.021 Ω | N/A | 913 Amps |
| Mallard/AW | 795 | 30/19 | 0.1628 | 0.0977 | 0.4885 | 1.140 | 752.4 | 409.52 | 1161.9 | 0.020 Ω | N/A | 938 Amps |
| Crane/AW | 874.5 | 54/7 | 0.1272 | 0.1272 | 0.3810 | 1.444 | 824.4 | 255.01 | 1079.4 | 0.0190 Ω | N/A | N/A |
| Ruddy/AW | 900 | 45/7 | 0.1414 | 0.0943 | 0.2829 | 1.131 | 849.6 | 140.20 | 989.8 | 0.0190 Ω | N/A | 970 Amps |
| Canary/AW | 900 | 54/7 | 0.1291 | 0.1291 | 0.3873 | 1.162 | 849.6 | 262.80 | 1112.4 | 0.0180 Ω | N/A | 986 Amps |
| Catbird/AW | 954 | 36/1 | 0.1628 | 0.1628 | 0.1628 | 1.140 | 896.3 | 59.47 | 955.8 | 0.0180 Ω | N/A | N/A |
| Rail/AW | 954 | 45/7 | 0.1456 | 0.0971 | 0.2913 | 1.165 | 900.5 | 148.64 | 1049.1 | 0.0180 Ω | N/A | 1003 Amps |
| Cardinal/AW | 954 | 54/7 | 0.1329 | 0.1329 | 0.3987 | 1.196 | 900.6 | 278.58 | 1179.2 | 0.017 Ω | N/A | 1022 Amps |
| Tanager/AW | 1033.5 | 36/1 | 0.1694 | 0.1694 | 0.1694 | 1.186 | 970.6 | 64.40 | 1035.0 | 0.017 Ω | N/A | N/A |
| Ortolan/AW | 1033.5 | 45/7 | 0.1515 | 0.1010 | 0.3030 | 1.212 | 975.0 | 160.81 | 1135.8 | 0.016 Ω | N/A | 1054 Amps |
| Curlew/AW | 1033.5 | 54/7 | 0.1383 | 0.1383 | 0.4149 | 1.245 | 975.2 | 301.65 | 1276.8 | 0.016 Ω | N/A | 1074 Amps |
| Bluejay/AW | 1113 | 45/7 | 0.1573 | 0.1049 | 0.3147 | 1.258 | 1051.0 | 173.47 | 1224.4 | 0.015 Ω | N/A | 1103 Amps |
| Finch/AW | 1113 | 54/19 | 0.1436 | 0.0862 | 0.4310 | 1.291 | 1056.0 | 318.54 | 1374.6 | 0.015 Ω | N/A | N/A |
| Bunting/AW | 1192.5 | 45/7 | 0.1628 | 0.1085 | 0.3255 | 1.302 | 1126.0 | 185.66 | 1311.5 | 0.014 Ω | N/A | N/A |
| Grackle/AW | 1192.5 | 54/19 | 0.1486 | 0.0892 | 0.4460 | 1.338 | 1131.0 | 341.34 | 1472.3 | 0.014 Ω | N/A | N/A |
| Skylark/AW | 1272 | 36/1 | 0.1880 | 0.1880 | 0.1880 | 1.316 | 1195.0 | 79.30 | 1274.5 | 0.013 Ω | N/A | N/A |
| Bittern/AW | 1272 | 45/7 | 0.1681 | 0.1121 | 0.3363 | 1.345 | 1201.0 | 198.12 | 1398.7 | 0.013 Ω | N/A | N/A |
| Pheasant/AW | 1272 | 54/19 | 0.1535 | 0.0921 | 0.4605 | 1.381 | 1207.0 | 363.69 | 1570.8 | 0.013 Ω | N/A | 1216 Amps |
| Dipper/AW | 1351.5 | 45/7 | 0.1733 | 0.1155 | 0.3465 | 1.386 | 1276.0 | 210.41 | 1486.4 | 0.013 Ω | N/A | N/A |
| Martin/AW | 1351.5 | 54/19 | 0.1582 | 0.9490 | 0.4745 | 1.424 | 1282.0 | 386.10 | 1668.0 | 0.0120 Ω | N/A | N/A |
| Bersimis/AW | 1361 | 6/1 | 0.1799 | 0.1000 | 0.3000 | 1.380 | 1284.0 | 157.69 | 1441.2 | 0.013 Ω | N/A | N/A |
| Bobolink/AW | 1431 | 45/7 | 0.1783 | 0.1189 | 0.3567 | 1.427 | 1351.0 | 222.93 | 1573.6 | 0.0120 Ω | N/A | 1283 Amps |
| Plover/AW | 1431 | 54/19 | 0.1628 | 0.0977 | 0.4885 | 1.465 | 1358.0 | 409.52 | 1767.1 | 0.0120 Ω | N/A | N/A |
| Nuthatch/AW | 1510.5 | 45/7 | 0.1832 | 0.1221 | 0.3663 | 1.465 | 1426.0 | 235.05 | 1660.7 | 0.011 Ω | N/A | N/A |
| Parrot/AW | 1510.5 | 54/19 | 0.1672 | 0.1003 | 0.5015 | 1.505 | 1432.0 | 431.59 | 1863.8 | 0.011 Ω | N/A | N/A |
| Lapwing/AW | 1590 | 45/7 | 0.1880 | 0.1253 | 0.3759 | 1.504 | 1501.0 | 247.64 | 1749.0 | 0.011 Ω | N/A | 1365 Amps |
| Falcon/AW | 1590 | 54/19 | 0.1716 | 0.1030 | 0.5150 | 1.545 | 1509.0 | 454.93 | 1963.6 | 0.011 Ω | N/A | N/A |
| Chukar/AW | 1780 | 84/19 | 0.1456 | 0.0874 | 0.4370 | 1.602 | 1691.0 | 327.62 | 2018.5 | 0.010 Ω | N/A | N/A |
| Bluebird/AW | 2156 | 84/19 | 0.1602 | 0.0961 | 0.4805 | 1.762 | 2045.0 | 396.10 | 2441.1 | 0.0080 Ω | N/A | N/A |
| Kiwi/AW | 2167 | 72/7 | 0.1735 | 0.1157 | 0.3471 | 1.735 | 2056.0 | 211.13 | 2267.3 | 0.0080 Ω | N/A | N/A |
| Thrasher/AW | 2312 | 76/19 | 0.1744 | 0.0814 | 0.4070 | 1.802 | 2193.0 | 284.30 | 2477.4 | 0.007 Ω | N/A | N/A |
| Nominal Aluminum Area | Name Code | Stranding and wire diameter | Sectional Area of Aluminum | Total Sectional Area | Appro. Overall Diameter | Appro. Mass | Calculated DC. resistance @ 20℃ | Calculated Breaking load | |
|---|---|---|---|---|---|---|---|---|---|
| Aluminum | AS | ||||||||
| mm2 | mm | mm | mm2 | mm2 | mm | kg/km | Ω/km | kN | |
| 25 | GOPHER | 6/2.36 | 1/2.36 | 26.25 | 30.62 | 7.08 | 100.8 | 1.0349 | 9.89 |
| 30 | WEASEL | 6/2.59 | 1/2.59 | 31.61 | 36.88 | 7.77 | 121.5 | 0.8592 | 11.79 |
| 40 | FERRET | 6/3.00 | 1/3.00 | 42.41 | 49.48 | 9.00 | 163.0 | 0.6405 | 15.66 |
| 50 | RABBIT | 6/3.35 | 1/3.35 | 52.88 | 61.70 | 10.05 | 203.2 | 0.5136 | 19.06 |
| 70 | HORSE | 12/2.79 | 7/2.79 | 73.37 | 116.2 | 13.95 | 243.1 | 0.3286 | 63.95 |
| 100 | DOG | 6/4.72 | 7/1.57 | 105.0 | 118.5 | 14.15 | 300.9 | 0.2619 | 33.01 |
| 150 | WOLF | 30/2.59 | 7/2.59 | 158.1 | 194.9 | 18.13 | 471.6 | 0.1694 | 71.64 |
| 150 | DINGO | 18/3.35 | 1/3.35 | 158.7 | 167.5 | 16.75 | 495.0 | 0.1781 | 36.46 |
| 175 | LYNX | 30/2.79 | 7/2.79 | 183.4 | 226.2 | 19.53 | 547.3 | 0.1460 | 82.49 |
| 175 | CARACAL | 18/3.61 | 1/3.61 | 184.3 | 194.5 | 18.05 | 574.9 | 0.1534 | 41.52 |
| 200 | PANTHER | 30/3.00 | 7/3.00 | 212.1 | 261.5 | 21.00 | 632.8 | 0.1263 | 95.34 |
| 200 | JAGUAR | 18/3.86 | 1/3.86 | 210.6 | 222.3 | 19.30 | 657.2 | 0.1342 | 46.50 |
| 400 | ZEBRA | 54/3.18 | 7/3.18 | 428.9 | 484.5 | 28.62 | 1238 | 0.06456 | 137.76 |
| Code Number | Steel Ratio | Areas | Number of Wires | Wire Diameter | Diameter | Linear Mass | Rated Strength | DC Resistance @20℃ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A1 | SA1A | Total | A1 | SA1A | A1 | SA1A | Core | Cond. | |||||
| mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | ohm/km | ||||
| 16 | 16.7 | 15.0 | 2.56 | 17.6 | 6 | 1 | 1.81 | 1.81 | 1.81 | 5.43 | 59.0 | 5.91 | 1.7923 |
| 25 | 16.7 | 24.0 | 4.00 | 28.0 | 6 | 1 | 2.26 | 2.26 | 2.26 | 6.78 | 92.1 | 9.00 | 1.1471 |
| 40 | 16.7 | 38.0 | 6.40 | 44.4 | 6 | 1 | 2.85 | 2.85 | 2.85 | 8.55 | 147.4 | 14.21 | 0.7169 |
| 63 | 16.7 | 60.0 | 10.1 | 70.1 | 6 | 1 | 3.58 | 3.58 | 3.58 | 10.7 | 232.2 | 21.17 | 0.4552 |
| 100 | 16.7 | 96.0 | 16.0 | 112 | 6 | 1 | 4.51 | 4.51 | 4.51 | 13.5 | 368.6 | 31.84 | 0.2868 |
| 125 | 5.6 | 123 | 6.85 | 130 | 18 | 1 | 2.95 | 2.95 | 2.95 | 14.8 | 384.3 | 29.18 | 0.2304 |
| 125 | 16.3 | 120 | 19.6 | 140 | 26 | 7 | 2.43 | 1.89 | 5.66 | 15.4 | 460.8 | 44.49 | 0.2308 |
| 160 | 5.6 | 158 | 8.77 | 167 | 18 | 1 | 3.34 | 3.34 | 3.34 | 16.7 | 492.0 | 36.38 | 0.1800 |
| 160 | 16.3 | 154 | 25.0 | 179 | 26 | 7 | 2.74 | 2.13 | 6.4 | 17.4 | 589.8 | 56.18 | 0.1803 |
| 200 | 5.6 | 197 | 11.0 | 208 | 18 | 1 | 3.74 | 3.74 | 3.74 | 18.7 | 614.9 | 43.62 | 0.1440 |
| 200 | 16.3 | 192 | 31.3 | 223 | 26 | 7 | 3.07 | 2.39 | 7.16 | 19.4 | 737.2 | 69.27 | 0.1443 |
| 250 | 9.8 | 244 | 24.0 | 268 | 22 | 7 | 3.76 | 2.09 | 6.26 | 21.3 | 830.9 | 67.80 | 0.1153 |
| 250 | 16.3 | 240 | 39.1 | 279 | 26 | 7 | 3.43 | 2.67 | 8.00 | 21.7 | 921.5 | 86.58 | 0.1154 |
| 315 | 6.9 | 310 | 21.4 | 331 | 45 | 7 | 2.96 | 1.97 | 5.92 | 23.7 | 996.4 | 78.33 | 0.09170 |
| 315 | 16.3 | 303 | 49.3 | 352 | 26 | 7 | 3.85 | 2.99 | 8.98 | 24.4 | 1161.1 | 107.6 | 0.09160 |
| 400 | 6.9 | 393 | 27.2 | 420 | 45 | 7 | 3.34 | 2.22 | 6.67 | 26.7 | 1265.2 | 97.50 | 0.07220 |
| 400 | 13 | 387 | 50.2 | 437 | 54 | 7 | 3.02 | 3.02 | 9.07 | 27.2 | 1402.9 | 124.2 | 0.07230 |
| 450 | 6.9 | 442 | 30.6 | 473 | 45 | 7 | 3.54 | 2.36 | 7.08 | 28.3 | 1423.4 | 107.5 | 0.06420 |
| 450 | 13 | 436 | 56.5 | 492 | 54 | 7 | 3.21 | 3.21 | 9.62 | 28.9 | 1578.2 | 139.7 | 0.06420 |
| 500 | 6.9 | 492 | 34.0 | 526 | 45 | 7 | 3.73 | 2.49 | 7.46 | 29.8 | 1581.6 | 119.4 | 0.05780 |
| 500 | 13 | 484 | 62.8 | 547 | 54 | 7 | 3.38 | 3.38 | 10.14 | 30.4 | 1753.6 | 154.0 | 0.05780 |
| 560 | 6.9 | 550 | 38.1 | 588 | 45 | 7 | 3.95 | 2.63 | 7.89 | 31.6 | 1771.3 | 133.8 | 0.05160 |
| 560 | 12.7 | 543 | 68.8 | 612 | 54 | 19 | 3.58 | 2.15 | 10.73 | 32.2 | 1956.3 | 169.4 | 0.05160 |
| 630 | 6.9 | 619 | 42.8 | 662 | 45 | 7 | 4.19 | 2.79 | 8.37 | 33.5 | 1992.8 | 150.5 | 0.04580 |
| 630 | 12.7 | 611 | 77.4 | 688 | 54 | 19 | 3.79 | 2.28 | 11.38 | 34.1 | 2200.9 | 190.5 | 0.04590 |
| 710 | 6.9 | 698 | 48.3 | 746 | 45 | 7 | 4.44 | 2.96 | 8.89 | 35.5 | 2245.8 | 169.6 | 0.04070 |
| 710 | 12.7 | 688 | 87.2 | 775 | 54 | 19 | 4.03 | 2.42 | 12.08 | 36.3 | 2480.3 | 214.7 | 0.04070 |
| 800 | 4.3 | 791 | 34.2 | 825 | 72 | 7 | 3.74 | 2.49 | 7.48 | 37.4 | 2412.8 | 167.7 | 0.03610 |
| 800 | 8.3 | 784 | 65.3 | 849 | 84 | 7 | 3.45 | 3.45 | 10.34 | 37.9 | 2598.9 | 206.4 | 0.03620 |
| 800 | 12.7 | 775 | 98.2 | 873 | 54 | 19 | 4.28 | 2.57 | 12.83 | 38.5 | 2794.8 | 241.9 | 0.03610 |
| 900 | 4.3 | 890 | 38.5 | 929 | 72 | 7 | 3.97 | 2.65 | 7.94 | 39.7 | 2714.4 | 188.6 | 0.03210 |
| 900 | 8.3 | 882 | 73.5 | 956 | 84 | 7 | 3.66 | 3.66 | 10.97 | 40.3 | 2923.8 | 221.9 | 0.03210 |
| 1000 | 4.3 | 989 | 42.7 | 1032 | 72 | 7 | 4.18 | 2.79 | 8.37 | 41.8 | 3016.0 | 209.6 | 0.02890 |
| 1120 | 4.2 | 1108 | 46.8 | 1155 | 72 | 19 | 4.43 | 1.77 | 8.85 | 44.3 | 3372.6 | 233.5 | 0.02580 |
| 1120 | 8.1 | 1098 | 89.4 | 1187 | 84 | 19 | 4.08 | 2.45 | 12.24 | 44.9 | 3628.3 | 282.9 | 0.02580 |
| 1250 | 4.2 | 1237 | 52.2 | 1289 | 72 | 19 | 4.68 | 1.87 | 9.35 | 46.8 | 3764.1 | 260.6 | 0.02310 |
| 1250 | 8.1 | 1225 | 99.8 | 1325 | 84 | 19 | 4.31 | 2.59 | 12.93 | 47.4 | 4049.5 | 315.7 | 0.02310 |
| Code Name | No. & Dia. of Wire | Cross Sectional Area | Approx. Overall Dia. | Approx. Weight | Calculated Breaking Load | Max. DC Resistance at 20 °C | |||
|---|---|---|---|---|---|---|---|---|---|
| Aluminum | Al-Clad Steel | Aluminum | Al-Clad Steel | Total | |||||
| No./mm | No./mm | mm2 | mm2 | mm2 | mm | kg/km | kN | Ω/km | |
| SKATING | 3/1.75 | 4/1.75 | 7.2 | 9.6 | 16.8 | 5.3 | 83 | 12.3 | 2.7500 |
| SOCCER | 3/2.50 | 4/2.50 | 14.7 | 19.6 | 34.3 | 7.5 | 171 | 24.9 | 1.3400 |
| SWIMMING | 4/3.00 | 3/3.00 | 28.3 | 21.2 | 49.5 | 9 | 218 | 28.9 | 0.8070 |
| TENNIS | 4/3.75 | 3/3.75 | 44.2 | 33.1 | 77.3 | 11.3 | 340 | 42.6 | 0.5170 |
| ANGLING | 6/2.50 | 1/2.50 | 29.5 | 4.9 | 34.4 | 7.5 | 113 | 10.6 | 0.9230 |
| ARCHERY | 6/3.00 | 1/3.00 | 42.4 | 7.1 | 49.5 | 9 | 163 | 15.1 | 0.6410 |
| BASEBALL | 6/3.75 | 1/3.75 | 66.3 | 11.0 | 77.3 | 11.3 | 254 | 22.3 | 0.4100 |
| BOWLS | 6/4.75 | 7/1.60 | 106 | 14.1 | 120 | 14.3 | 385 | 32.7 | 0.2590 |
| CRICKET | 30/2.50 | 7/2.50 | 147 | 34.4 | 182 | 17.5 | 636 | 64.4 | 0.1820 |
| DARTS | 30/3.00 | 7/3.00 | 212 | 49.5 | 262 | 21 | 913 | 91.6 | 0.1260 |
| DICE | 30/3.25 | 7/3.25 | 249 | 58.1 | 307 | 22.8 | 1070 | 106 | 0.1080 |
| DIVING | 30/3.50 | 7/3.50 | 289 | 67.3 | 356 | 24.5 | 1240 | 122 | 0.0928 |
| GOLF | 54/3.00 | 7/3.00 | 382 | 49.5 | 431 | 27 | 1380 | 120 | 0.0726 |
| GYMNASTICS | 54/3.25 | 7/3.25 | 448 | 58.1 | 506 | 29.3 | 1620 | 139 | 0.0619 |
| HURDLES | 54/3.50 | 7/3.50 | 519 | 67.3 | 587 | 31.5 | 1880 | 159 | 0.0533 |
| LACROSSE | 54/3.75 | 19/2.25 | 596 | 75.5 | 672 | 33.8 | 2150 | 180 | 0.0465 |
| RUGBY | 54/4.75 | 19/2.85 | 957 | 121.0 | 1078 | 42.8 | 3450 | 288 | 0.0290 |
Delivers high-quality ACSR/AS (ACSR/AW) Conductor to customers worldwide.
Enquire Now!With over 30,000 products sold annually, LM Cables provides its customers with knowledgeable market and product application experts, standard same-day shipments, 99.99% order accuracy and on-time delivery, and 24/7/365 service.
Contact our trained experts today to find your perfect power solution.
Request a quote
An integrated cable and wire solution provider,for the transmission and distribution of electricity that connect the world.
